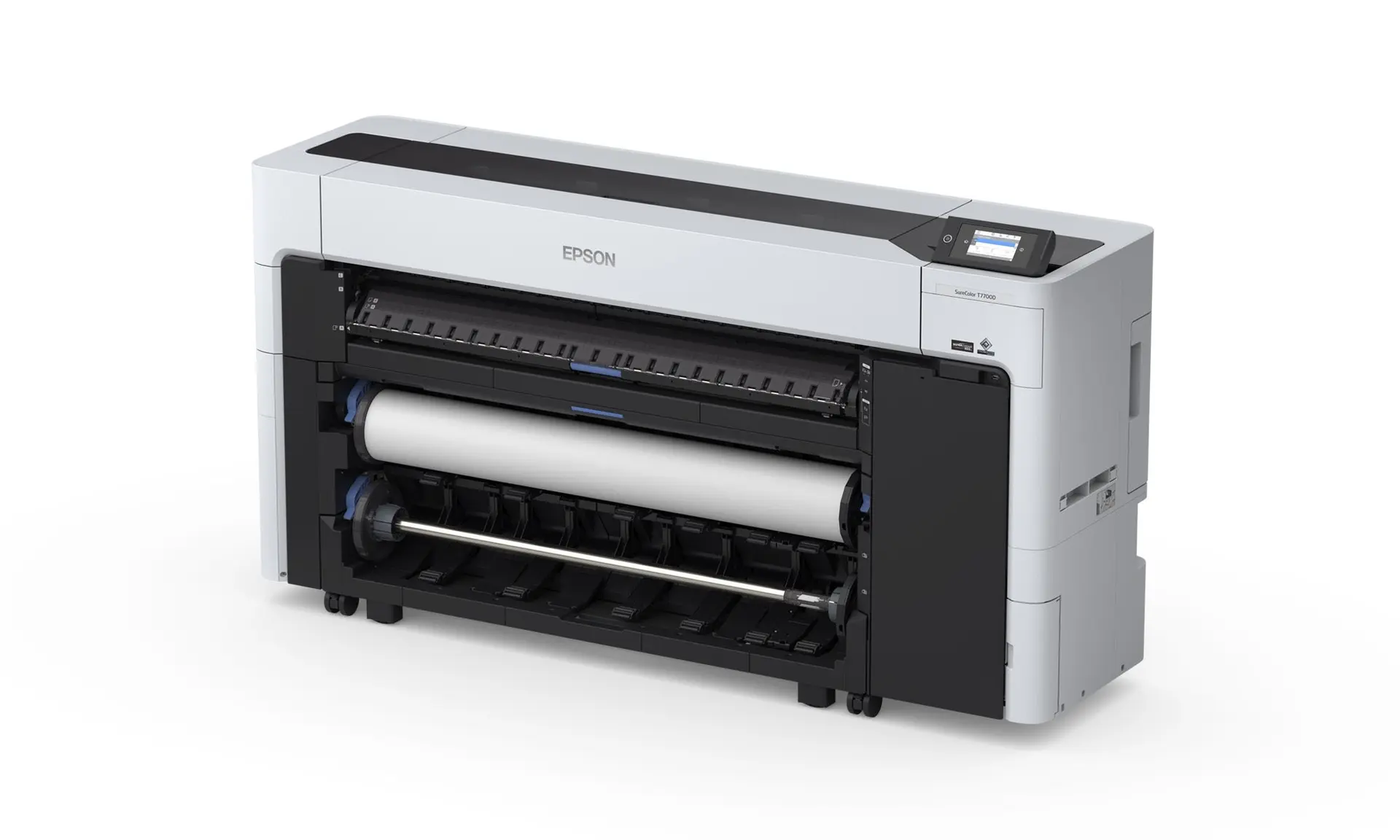

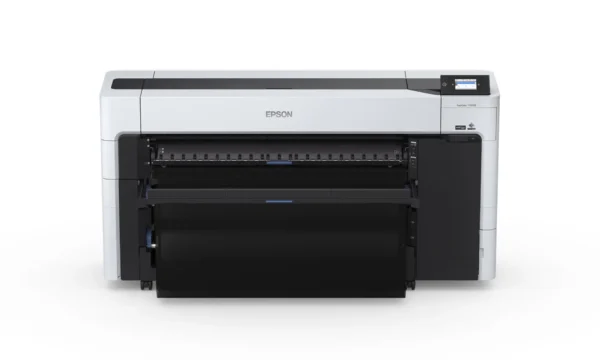

Epson SureColor SC-T7700D Large Format Printer
• Enhanced security features
Protect highly confidential documents with ease
• Compact and contemporary design
Fits seamlessly into most working environments
• Impressive print speeds
Up to 130m2/hr
• Versatility
Automatic media loading, dual roll, auto take-up, and auto-switching
• Quality
6-colour printer with 350/700ml ink cartridges
Product Description
| Technology | |
|---|---|
| Printing Method | PrecisionCore™ Micro TFP printhead |
| Ink Technology | Ultrachrome® XD3 |
| Number of colours | 6 colour |
| Colours Capacity | Photo Black [350ml, 700ml], Matte Black [350ml, 700ml], Cyan [350ml, 700ml], Yellow [350ml, 700ml], Magenta [350ml, 700ml], Red [350ml, 700ml] |
| Minimum Droplet Size | 3.5 pl, With Variable-Sized Droplet Technology |
| Minimum line width | 0.02 mm |
| Line accuracy | +/-0.26 |
| Print Speeds (CAD A1 page size) | Quick3 ppm |
| Print from | PC, MAC, Network, Mobile Device, Cloud, Direct USB |
| Nozzle Configuration | 1,600 Nozzles per Color |
| Printing Resolution – Draft | 600 x 600 DPI |
| Printing Resolution – Maximum Quality | 2,400 x 1,200 DPI |
| Printing Resolution – Speed | 300 x 600 DPI |
| Paper / Media Handling | |
| Paper Formats | 17″, 24″, 36″, 44″, A1, A0, B0, B1 (72.8×102.8 cm) |
| Thickness | Single Sheet0.1 mm, Roll0.8 mm, Rigid board suppported |
| Auto Take Up Reel | Yes |
| Printable Length | Roll91 Minimum |
| Roll Capacity – Diameter | Roll 1:170 mm, Roll 2:170 mm |
| Roll Capacity – Weight | Roll 1:12,500 g, Roll 2:12,500 g |
| Borderless printing on | 20 inches, 10″ (25.4cm) Roll, 17″ (43.1cm) Roll, 24″ (60.9cm) Roll, 36″ (91.4cm) Roll, 44″ (111.8cm) Roll |
| General | |
| Power consumption | 70 Watt, 0.3 Watt (standby) |
| Supply Voltage | AC 100 V – 240 V, 50 Hz – 60 Hz |
| Product dimensions | 1,848 x 499 x 975 mm (Width x Depth x Height) |
| Product weight | 158 kg |
| Sound Power | Operation:49.6 B (A) – Standby:6.6 B (A) |
| Mobile and Cloud printing services | Apple AirPrint, Epson Cloud Solution PORT, Epson Smart Panel App |
| Noise Level | Operation (Roll):6.6 dB (A) Operating (Sheet):6.6 dB (A) |
| What’s in the box | AC adapter, Adobe PostScript 3, Ink set, Installation/safety manual, Maintenance boxes, Roll Feed Spindle 44″, Setup guide, SureColor T-Series Printer, Warranty Documents |
| Optional extras | Cover Plus warranty extensions, SSD (Solid State Drive), NFC Card Reader (Server), NFC Card Reader (Serverless), Roll Feed Spindle 44″ |
| Other Features | |
| Memory | 4 GB |
| Compatible Operating Systems | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP, macOS 11 or later |
| Emulations | ESC/P-R, PostScript 3, Adobe® Postscript 3®, PDF 1.7, HP-GL2, RTL |
| Optional storage | 1TB SSD |
| Features | Touchscreen, Bluetooth, Direct print from USB, Driver Preview, Auto Take up Reel, Nozzle Verification Technology |
| Interfaces | Hi-Speed USB – compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac |
| Network | Wired, Wireless |
| Optional Software & Solutions | Epson Print Automate, Epson Cloud Solution PORT, Epson LFP Accounting Tool, Epson Device Admin, Epson Edge Dashboard, Epson Print Admin, Epson Print Admin Serverless |
| Security | SNMP, IPSec, AES-128, AES-256, Data storage Encryption, Data Encryption, WPA3, NFC – Card Authentication Reader, TMP (Trusted Platform Module), PIN code Release, Image Overwrite, User Authorisation, LDAP, IEEE802, SSL/TLS |
| Media Handling | Auto cutter, Auto take up reel, Borderless Print, Roll (Simplex), Thick Media Support |
