Canon imagepress C710
Print Speed (Simplex/Duplex) : 8.5″ x 11″: Up to 70 ipm; 11″ x 17″: Up to 35 ipm; 12″ x 18″: Up to 35 ipm; 13″ x 19″: Up to 33 ipm; 13” x 30”: Up to 19 ipm
Scan Speed (Letter, 300 dpi)1 : BW Up to 230 opm; Color 150 opm
Print Resolution: Up to 2400 x 2400 dpi
Paper Capacity2 : Standard Up to 1,650 sheets; Maximum Up to 7,650 sheets
Paper Size : Standard 3.94″ x 5.83″ to 13″ x 19.2″; Optional 3.94″ x 5.83″ to 13″ x 51.2″
Paper Weight : Standard 14 lb. Bond to 110 lb. Cover; Optional 14 lb. Bond to 130 lb. Cover
Automatic Duplexing : Media Size: Up to 13″ x 30″; Media Weight: Up to 130 lb. Cover
Envelopes: #10 Business, Monarch, DL, ISO-C5, 6″ x 9″, 9″ x 12″, 10″ x 13
Print Servers PRISMAsync Print Server: PRISMAsync Print Server; LP imagePRESS Server H350; imagePRESS Server H250; Canon Printer Board (standard)
-
Canon imagePRESS C910 /C810
Print Speed (Simplex/Duplex) : 8.5″ x 11″: Up to 90/80 ipm; 11″ x 17″: Up to 45/40 ipm; 12″ x 18″: Up to 42/40 ipm; 13″ x 19″: Up to 40/38 ipm; 13” x 30”: Up to 23/22 ipm
Scan Speed (Letter, 300 dpi): BW: Up to 230 opm; Color: 150 opm;
Print Resolution: Up to 2400 x 2400 dpi
Paper Capacity: Standard Up to 1,650 sheets; Maximum Up to 7,650 sheets
Paper Size: Standard: 3.94″ x 5.83″ to 13″ x 19.2″; Optional: 3.94″ x 5.83″ to 13″ x 51.2″
Paper Weight : Standard: 14 lb. Bond to 110 lb. Cover; Optional: 14 lb. Bond to 130 lb. Cover
Automatic Duplexing : Media Size: Up to 13″ x 30″; Media Weight: Up to 130 lb. Cover
Envelopes: #10 Business, Monarch, DL, ISO-C5, 6″ x 9″, 9″ x 12″, 10″ x 13″
-
Canon imageprograf TX-2000
Printer Type: 5 Colour – 24″/609.6mm
Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Number of Nozzles: Total: 15,360 MBK: 5,120 nozzles; C, M, Y, BK: 2,560 nozzles each
Print Resolution: 2,400 x 1,200 dpi
Nozzle Pitch: 1,200 x 2 includes Non-firing nozzle detection and compensation system
Ink Droplet Size: 5 Picolitre per colour
Ink Capacity: Bundled Starter Ink: 330ml (MBK)/160ml (BK,C,M,Y) Sales Ink: 160ml/330ml/700ml
Ink Type (Pigment ink): 5 colour MBK/BK/C/M/Y
Standard Memory: 128GB (Physical memory 2GB)
CAD Drawing Plain Paper (A1 Roll): 0:24 (Fast Economy Mode), 0:24 (Fast), 0:40 (Standard)
Poster Plain Paper (A1 Roll): 0:24 (Fast Economy mode); 0:24 (Fast); 0:49 (Standard)
Heavy coated Paper (A1 Roll): 0:58 (Fast); 1:28 (Standard)
Hard disk: 500GB (Encrypted)
Media Width: Roll paper: 203.2mm – 609.6mm; Cut sheet: 203.2mm – 609.6mm
Media thickness: 0.07 – 0.8mm
Minimum Printable Length: 203.2mm
Maximum Printable Length: Roll Paper: 18 m (varies according to the OS and application); Cut Sheet: 1.6m
Maximum Media Roll Diameter: 170mm
Paper Feed Method: Roll Paper: Front loading, front output; Cut Sheet: Front loading, front output (Manual feed using media locking lever)
Borderless Printing Width (Roll Only) Recommended: 515mm(JIS B2), 594mm(ISO A1), 10”, 14”, 17”, 24”
Printable: 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 8”, 12”, 16”, 20”, 300mm, 500mm, 600mm
Maximum Numbers of delivered prints Multi-position Basket (Standard Position): 1 sheet (any image)
Flat Position: 20 sheets(A2 landscape, any image, plain paper/coated paper)
Maximum Numbers of delivered prints Stacker (Basket Position): 1 sheet (any image)
Folding Position : 100 sheets (A1 portrait, CAD drawing, plain paper); Stacking Position : 100 sheets (A2 landscape, CAD drawing, plain paper)
Physical Dimensions (Printer unit with basket open and printer stand): 1110 x 984 x 1168mm (Basket Open)
Weight: 91 kg (including Roll Holder)
-

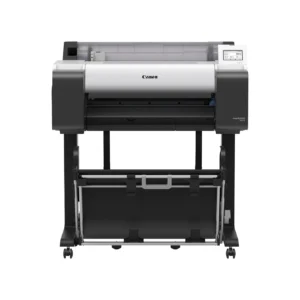

Canon imageprograf TM-200
Printer Type: 5 Colour 24″/610mm
Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution: 2,400 x 1,200 dpi
Number of Nozzles: 15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
Line Accuracy: ±0.1% or less; User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch: 1,200 dpi (2 lines)
Ink Droplet Size: minimum 5 pl per colour
Ink Capacity: Sales Ink: 130ml/300ml; Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow)
Ink Type: Pigment inks – Black, Matte Black, Cyan, Magenta, Yellow
Printer languages: SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02)
Standard Memory: 2 GB
CAD Drawing: Plain Paper (A1 page size): 0:24 (Fast Economy Mode); 0:27 (Fast); 0:42 (Standard)
Poster: Plain Paper (A1 page size): 0:25 (Fast); 0:44 (Standard)
Heavy Coated Paper (A1 page size): 0:55 (Fast); 1:22 (Standard)
Media Feed and Output: Roll paper: One Roll, Uppper-loading, Front Output; Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever)
Media Width: Roll paper: 203.2 -610 mm; Cut sheet: 203.2 – 610 mm
Media thickness: Roll/Cut: 0.07 – 0.8 mm
Minimum Printable Length: Roll paper: 203.2 mm; Cut sheet: 279.4 mm
Maximum Printable Length: Roll paper: 18 m (Varies according to the OS and application); Cut sheet: 1.6 m
Maximum Media Roll Diameter: 150 mm
Media Core Size: Internal diameter of roll core: 2″/3″
Margins Recommended area: Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm; Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area: Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm; Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm;
Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm; Cut sheet for others: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity: Manually switchable by user
Borderless Printing Width (Roll Only): 515mm (JIS B2), 594mm (ISO A1), 10″, 14″, 17″, 24″
Printable: 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 420mm (ISO A2), 8″, 12″, 16″, 20″, 300mm, 500mm, 600mm
Maximum number of delivered prints: Standard position: 1 sheet; Flat position: 20 sheets on A2 landscape (excludes strong curled condition)
-

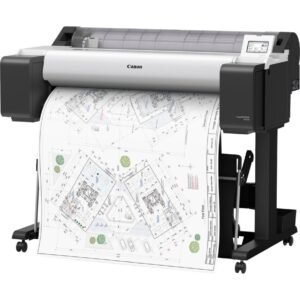

Canon imageprograf TM-300
Printer Type: 5 Colour 36″/914mm
Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution: 2,400 x 1,200 dpi
Number of Nozzles: 15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
Line Accuracy: ±0.1% or less
Nozzle Pitch: 1,200 dpi (2 lines)
Ink Droplet Size: minimum 5 pl per colour
Ink Capacity: Sales Ink: 130ml/300ml; Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow)
Ink Type: Pigment inks – Black, Matte Black, Cyan, Magenta, Yellow
Standard Memory: 2 GB
CAD Drawing: Plain Paper (A0 page size); 0:40 (Fast Economy Mode); 0:46 (Fast); 1:14 (Standard)
Poster: Plain Paper (A0 page size); 0:44 (Fast); 1:18 (Standard)
Coated Paper (A0 page size): 1:41 (Fast); 2:36 (Standard)
Media Feed and Output: Roll paper: One Roll, Upper-loading, Front Output; Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever)
Media Width: Roll paper: 203.2 -917 mm; Cut sheet: 203.2 – 917 mm
Media thickness: Roll/Cut: 0.07 – 0.8 mm
Minimum Printable Length: Roll paper: 203.2 mm; Cut sheet: 279.4 mm
Maximum Printable Length: Roll paper: 18 m (Varies according to the OS and application); Cut sheet: 1.6 m
Maximum Media Roll Diameter: 150 mm
Media Core Size: Internal diameter of roll core: 2″/3″
Margins Recommended area: Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm; Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area: Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm; Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm; Cut sheet for thers: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity: Manually switchable by user
Borderless Printing Width (Roll Only): 515mm(JIS B2), 728mm(BIS B1), 594mm(ISO A1), 841mm(ISO A0),10″,14″,17″,24″,36″
Printable: 257mm(JIS B4),297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2),8″, 12″, 16″, 20″, 30″, 300mm, 500mm, 600mm, 800mm
Physical Dimensions: Main Unit, Stand and Basket; 1289 x 887 x 1060 mm (Basket Open); 1289 x 757 x 1060 mm (Basket Closed)
Weight: 60 kg (including Roll Holder Set, excluding ink and print head)
-

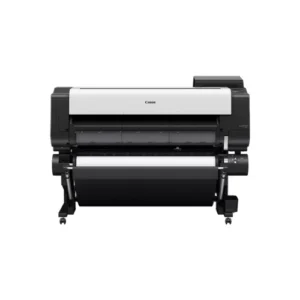

Canon imageprograf TX-4000
Printer Type: 5 Colour – 44″/1117.6mm
Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Number of Nozzles (Total): 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each
Print Resolution: 2,400 x 1,200 dpi
Nozzle Pitch: 1,200 x 2 includes Non-firing nozzle detection and compensation system
Line Accuracy: ±0.1 % or less
Ink Droplet Size: 5 Picolitre per colour
Ink Capacity: Bundled Starter Ink: 330ml (MBK, BK,C,M,Y); Sales Ink: 160ml/330ml/700ml
Ink Type (Pigment ink): 5 colour MBK/BK/C/M/Y
Standard Memory: 128GB (Physical memory 2GB)
Printing Speed (CAD Drawing) Plain Paper (A0 Roll): 0:37 (Fast Economy Mode); 0:40 (Fast); 1:10 (Standard)
Poster Plain Paper (A0 Roll): 0:42 (Fast Economy mode); 0:42 (Fast); 1:26 (Standard)
Heavy coated Paper (A0 Roll): 1:43 (Fast); 2:37 (Standard)
Hard disk: 500GB (Encrypted)
Media Width Roll paper: 203.2mm – 1118mm; Cut sheet: 203.2mm – 1118mm
Media thickness: 0.07 – 0.8mm
Minimum Printable Length: 203.2mm
Maximum Printable Length Roll Paper: 18m (varies according to the OS and application); Cut Sheet: 1.6m
Maximum Media Roll Diameter: 170mm
Paper Feed Method Roll Paper: Front loading, front output; Cut Sheet: Front loading, front output (Manual feed using media locking lever)
Borderless Printing Width (Roll Only) Recommended: 515mm(JIS B2), 728mm(JIS B1), 1030mm(JIS B0), 594mm(ISO A1), 841mm(ISO A0), 10″, 14″, 17″, 24″, 36″, 42″, 44″
Printable: 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 8″, 12″, 16″, 20″, 30″, 300mm, 500mm, 600mm, 800mm, 1000mm
Maximum Numbers of delivered prints Multi-position Basket Standard Position : 1 sheet (any image); Flat Position : 20 sheets (A2 landscape, any image, plain paper/coated paper)
Maximum Numbers of delivered prints Stacker Basket Position : 1 sheet (any image); Folding Position : 100 sheets (A0/A1 portrait, CAD drawing, plain paper); Stacking Position : 100 sheets (A1/A2 landscape, CAD drawing, plain paper)
Physical Dimensions and Weight (Printer unit with basket open and printer stand): 1593 x 984 x 1168 mm (Basket Open)
Weight: 114 kg (including Roll Holder)
-
Epson Maintenance Box WF-C5xxx/M52xx/M57xx
Compatible Or Original: Original
For Use With: WF-C5xxx, M52xx and M57xx
Form: Maintenance Kit
Product code: EP63495
Manufacturer Ref: C13T671600
-
Epson SureColor SC-F6300 (hdK)
Complete Epson solution: Hardware, software, printhead, ink and sublimation paper
Easy installation: Special tools and specialist knowledge are not required
Optional take-up reel: The optional Epson take-up reel offers more control of take-up quality
Product durability: The enhanced specification of key parts increases product life and ROI
Low TCO: Easy user access and downtime reduction
Printing Method: PrecisionCore™ TFP print head
Ink Technology: Ultrachrome® DS
Colours: Black, Cyan, Yellow, Magenta
Ink tank capacity: 1,500 ml
Minimum Droplet Size: 4 pl, With Variable-Sized Droplet Technology
Printing Resolution: 720 x 1,400 DPI
Paper Formats: 44 ” (111.8 cm)
Print Margins Roll Media Mode 1: 5 mm (top), 3 mm (right), 3 mm (bottom), 3 mm (left)
Compatible Paper Thickness: 0.08 mm – 0.5 mm
Compatible Paper Weight: 40g/m² or heavier
Compatible Substrate Thickness: Up to 1 mm
Product dimensions: 1,608 x 1,128 x 917 mm (Width x Depth x Height)
Product weight: 85 kg
Memory (Printer): 512 MB, Network: 128 MB
Included Software: Epson Edge Print
-
Epson WF-C5x90 Series Ink Cartridge XXL Black
Capacity/Ink Volume (ml): 136.7
Color: Black
Depth (mm): 16.5
OEM: C13T946140
Page Yield: 10000
Print Method: Inkjet
Width (mm): 29
Height (mm): 3.5
Weight: 0.25
-
Epson WF-C5X9R Black XL Ink Supply Unit (Cartridge)
Color: Black
Model: C5X9R
-
Epson WF-C5X9R Cyan XL Ink Supply Unit (Cartridge)
Color: Cyan
Model: C5X9R
-
Epson WF-C5X9R Magenta XL Ink Supply Unit (Cartridge)
The wf-c5x9r magenta xl ink supply unit Inks & Toner is manufactured by Epson. The models that are compatible with one or more items in this range: WorkForce Pro WF-C579RDWF Series; WorkForce Pro WF-C579RDTWF; WorkForce Pro WF-C579RD2TWF; WorkForce Pro WF-C529RDTW; WorkForce Pro WF-C529R Series.
-
Epson WF-C5X9R Yellow XL Ink Supply Unit (Cartridge)
Color: Yellow
Model: C5X9R
-
Epson WF-C5XXX Series Ink Cartridge XL Cyan
Capacity – Ink Volume (ml): 38.1
Colour: Cyan
Depth (mm): 12.5
OEM: C13T945240
Print yield: 5,000 pages
Print Method: Inkjet
Width (mm): 29
Height (mm): 3.5
-
Epson WF-C5xxx Series Ink Cartridge XL Magenta
Capacity / Ink Volume (ml): 38.1
Colour: Magenta
Depth (mm): 12.5
OEM: C13T945340
Print yield: 5,000 pages
Print Method: Inkjet
Height (mm): 3.5
Weight: 0.14
-
Epson WF-C5XXX Series Ink Cartridge XL Yellow
Capacity / Ink Volume (ml): 38.1
Colour: Yellow
Depth (mm): 12
OEM: C13T945440
Print yield: 5,000 pages
Print Method: Inkjet
Height (mm): 3.5
Weight: 0.14
-
EPSON WorkForce Pro WF-C5790DWF
- Printing Method: Precision Core™ Print Head
Nozzle Configuration: 800 Nozzles Black, 800 Nozzles per Color
Minimum Droplet Size: 3.8 Pl, With Variable-Sized Droplet Technology
Ink Technology: DURABrite™ Ultra
All-in-One Function: Print, Scan, Copy, Fax
Printing Speed ISO/IEC 24734: 24 pages/min Monochrome, 24 pages/min Color
Duplex Printing Speed ISO/IEC 24734: 15 A4 pages/min Monochrome, 15 A4 pages/min Color
Printing Speed: 34 pages/min Monochrome (plain paper 75 g/m²), 34 pages/min Color (plain paper 75 g/m²)
Printing Resolution: 4,800 x 1,200 DPI
Scanning Speed (new): 24 ipm ( Monochrome, Single-sided, 200 dpi, ADF ); 24 ipm ( Color, Single-sided, 200 dpi, ADF ); 8 ipm ( Monochrome, Double-sided, 200 dpi, ADF ); 8 ipm ( Color, Double-sided, 200 dpi, ADF ); 5 sec/page ( Monochrome, 200 dpi, Flatbed ); 5 sec/page ( Color, 200 dpi, Flatbed );
Scanning Resolution: 1,200 DPI x 2,400 DPI (Horizontal x Vertical)
Optical Resolution (ADF): 1,200 DPI (Horizontal x Vertical)
Advanced document integration: Scan to Email, Scan to FTP, Scan to Network folders, Computer (Epson Document Capture Pro), USB Memory Device
Output formats: JPEG, TIFF, PDF
Scanner type: Contact image sensor (CIS)
Type of fax: Walk-up black and white and colour fax capability
Fax Transmission Speed: upto 33.6kbps / Approx. 3 sec/page
Error correction mode: CCITU/ITU Group3 fax with Error Correction Mode
Fax speed dials (max): 200 names and numbers
Page memory: upto 550 pages/ 6MB (ITU-T No. 1 chart)
Fax Functions: PC Fax, Fax to E-mail, Fax to Folder, Address Book, Delay Send, Broadcast Fax
Copy Speed: Up to 22 ipm Black, Up to 22 ipm Colour; Simplex ADF 600 x 600 dpi (ISO/ IEC 24735)
Copy resolution (dpi): 600 x 1200
Reduction / Enlargement: 25 % – 400 %
Maximum number of copies: 999
Paper Formats: C4 (Envelope), Legal, A6, A5, B5, Letter, 9 x 13 cm, 10 x 15 cm, 13 x 18 cm, A4, B6, C5 (Envelope), No. 10 (Envelope), User defined, C6 (Envelope), DL (Envelope)
Automatic Document Feeder: 50 pages
Compatible Paper Weight: 64 g/m² – 256 g/m²
Duplex: Yes
Standard Paper input: 330 Sheets Standard, 80 Sheets MP tray, 250 Sheets paper tray
Output Tray Capacity: 150 Sheets
Standard paper tray(s): 80-Sheet Multi-Purpose Tray, 250-sheet paper tray
Optional paper tray(s): 500-Sheet paper tray
Maximum paper input: 830
Rear paper path (special media): Yes
Number of paper trays: 2
Paper Input Name: RASF
Paper Formats: A4, A5, A6, C4 (Envelope), DL (Envelope), Letter, Postcard, User defined, Legal
Custom sizes: Min 64x 127 mm to Max 216x 60,000 mm
Compatible paper weight: 64 g/m² – 256 g/m²
Paper Capacity 1: 80 Sheets of Plain Paper, Postcards, Glossy paper, Envelopes, Labels, 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead, Glossy Photo Paper
Paper Input Name: C1
Paper Formats: A4, A5, A6, Letter
Custom sizes: Min 89x 127 mm to Max 216x 356 mm
Compatible paper weight: 64 g/m² – 160 g/m²
Paper Capacity 1: 250 Sheets of Plain Paper, Envelopes, 80gsm
Media type: Plain Paper, Recycled Paper, Color Paper, Letterhead
Paper Input Name: Duplex
Paper Formats: A4, A5, A6, B5, B6, Letter, HLT, Legal, Executive
Custom sizes: Min 148x 210 mm to Max 216x 297 mm
Compatible paper weight: 64 g/m² – 160 g/m²
Media type: Plain Paper, Recycled Paper, Color Paper, Letterhead
- Printing Method: Precision Core™ Print Head
-
Epson workforce pro WF-C579R
- Printing Method: Precision Core™ Print Head
Nozzle Configuration: 800 Nozzles Black, 800 Nozzles per Color
Minimum Droplet Size: 3.8 pl, With Variable-Sized Droplet Technology
Ink Technology: Replaceable Ink Pack System (RIPS)
Application: Office Work group
All-in-One Functions: Print, Scan, Copy, Fax
First Page Out from Ready: Monochrome 4.8 Seconds, Colour 5.3 Seconds
Printing Speed ISO/IEC 24734: 24 pages/min Monochrome, 24 pages/min Colour
Duplex Printing Speed ISO/IEC 24734: 15 A4 pages/min Monochrome, 15 A4 pages/min Colour
Printing Speed: 34 pages/min Monochrome (plain paper 75 g/m²), 34 pages/min Colour (plain paper 75 g/m²)
Printing Resolution: 4,800 x 1,200 DPI
Max Duty cycle: 50,000 pages per month
Recommended Duty Cycle: 400 – 4,500 pages per month
Colours: Black, Cyan, Yellow, Magenta
Scanning Speed (new): 30 ipm ( Monochrome, Single-sided, 200 dpi, ADF ); 30 ipm ( Colour, Single-sided, 200 dpi, ADF ); 60 ipm ( Monochrome, Double-sided, 200 dpi, ADF ); 60 ipm ( Colour, Double-sided, 200 dpi, ADF ); 5 sec/page ( Monochrome, 200 dpi, Flatbed ); 5 sec/page ( Colour, 200 dpi, Flatbed );
Scanning Resolution: 1,200 DPI x 2,400 DPI (Horizontal x Vertical)
Optical Resolution (ADF): 1,200 DPI x 2,400 DPI (Horizontal x Vertical)
Advanced document integration: Scan to Email, Scan to FTP, Scan to Network folders, Computer (Epson Document Capture Pro), USB Memory Device
Output formats: JPEG, TIFF, PDF
Scanner type: Contact image sensor (CIS)
Type of fax: Walk-up black and white and colour fax capability
Fax Transmission Speed: upto 33.6kbps / Approx. 3 sec/page
Error correction mode: CCITU/ITU Group3 fax with Error Correction Mode
Fax speed dials (max): 200 names and numbers
Page memory: upto 550 pages/ 6MB (ITU-T No. 1 chart)
Fax Functions: PC Fax, Fax to E-mail, Memory Reception, Auto Redial, Speed Dial, Fax to Folder, Address Book, Broadcast Fax
Copy Speed: Up to 22 ipm Black, Up to 22 ipm Colour
*Simplex ADF 600 x 600 dpi (ISO/ IEC 24735)
Copy resolution (dpi): 600 x 1200
Reduction / Enlargement: 25 % – 400 %
Maximum number of copies: 999
Maximum Copy Size: A4
Paper Formats: A4, A5, A6, B5, B6, C4 (Envelope), C6 (Envelope), DL (Envelope), No. 10 (Envelope), Letter, Legal, 9 x 13 cm, 10 x 15 cm, 13 x 18 cm, 16:9, HLT, EXE, User defined
Automatic Document Feeder: 50 pages
Compatible Paper Weight: 64 g/m² – 256 g/m²
Duplex: Yes
Standard Paper input: 830 Sheets Standard, 80 Sheets MP tray, 750 Sheets paper tray
Output Tray Capacity: 150 Sheets
multi function: 830 Sheets Standard, 1,330 Sheets Maximum
Standard paper tray(s): 80-Sheet Multi-Purpose Tray, 250-sheet paper tray, 500-Sheet paper tray
Optional paper tray(s): 500-Sheet paper tray
Rear paper path (special media): Yes
Number of paper trays: 3
Paper Input Name: RASF
Paper Formats: A4, A5, A6, B5, B6, C4 (Envelope), C6 (Envelope), DL (Envelope), No. 10 (Envelope), Letter, 10 x 15 cm, 13 x 18 cm, 16:9, Legal, Executive
Custom sizes: Min 64x 127 mm to Max 215.9x 6,000 mm
Compatible paper weight: 64 g/m² – 300 g/m²
Paper Capacity 1: 80 Sheets of Plain Paper, 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead, Glossy Photo Paper
Paper Input Name: C1
Paper Formats: A4, A5, A6, B5, B6, C4 (Envelope), C6 (Envelope), DL (Envelope), No. 10 (Envelope), Letter, HLT, Executive
Custom sizes: Min 89x 127 mm to Max 215.9x 355.6 mm
Compatible paper weight: 64 g/m² – 300 g/m²
Paper Capacity 1: 250 Sheets of Plain Paper, 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead, Glossy Photo Paper
Paper Input Name: C2
Paper Formats: A4, A5, A6, B5, B6, Letter, HLT, LGL, Executive
Custom sizes: Min 100x 148 mm to Max 215.9x 355.6 mm
Compatible paper weight: 64 g/m² – 160 g/m²
Paper Capacity 1: 500 Sheets of Plain Paper, 80gsm
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead
Paper Input Name: Duplex
Paper Formats: A4, A5, A6, B5, B6, Letter, HLT, Legal, Executive
Custom sizes: Min 148x 210 mm to Max 216x 297 mm
Compatible paper weight: 64 g/m² – 160 g/m²
Media type: Plain Paper, Recycled Paper, Colour Paper, Letterhead
- Printing Method: Precision Core™ Print Head
-
Eva robot photographer
Instant Prints
Speech Notifications
Autonomous
Size – 650mm x 560mm x 1500mm.
Innovative humanoid robot that has multiple use cases including, but not limited to, weddings, parties, product launches, Proms, Bar/ Bat Mitzvah and entertainment functions
Facial recognition
Share pictures on social media or print in the room to our Print Station.
Large 23.8 inch touch screen
Customize the on screen options with branded videos, company logos or altering greetings.
Smart map building
Infrared Sensors to achieve precise indoor navigation and obstacle avoidance
Frequent back-end updates
Uses a Dual OS
-
Felix Schoeller H25110 Ultra Metallic Glossy 245
Product Series: ULTRA
Product Category: Microporous Resin-Coated Paper
Surface: Metallic Glossy
Weight: 245 g/m²
Whiteness: Metallic
Application Segment: Wall Decoration / Poster
Printability: Simplex printable
Printing Technology: Inkjet water-based
Compatibility: Can be used on all commercial thermal, piezo water-based printing systems like Epson, Canon, Hewlett-Packard, Kodak, Encad etc
Thickness in µm: 235
Thickness in mil: 9.3
CIE whiteness (D65/10°): > 118
CIELab Colour Elrepho UVO (D65): L: 91,7 ± 0,7; a: 0,3 ± 0,3; b: -4,5 ± 0,7; delta b: 4,1 ± 0,7
Opacity: > 95
Standard Formats Rolls
Ø Core: 2″ Core
Roll Length: 25m
Width: 61cm (24″)
-
Felix Schoeller H63210 Ultra Satin 170
Product Series: ULTRA
Product Category: Microporous Resin-Coated Paper
Surface: Satin
Weight: 170 g/m²
Whiteness: Alpine White
Application Segment: Sign & Display Graphics/Paper; Wall Decoration/Poster
Thickness in µm : 176
Thickness in mil: 6.9
CIE whiteness (D65/10°): > 140
CIELab Colour Elrepho UVO (D65): L: 94,1 ± 0,8; a: -0,2 ± 0,5; b: -2,0 ± 0,8; delta b: 10,5 ± 0,8
Opacity: > 89
Standard Formats Rolls
Ø Core: 2″ Core
Roll Length: 30m
Width: 43,2cm (17″); 61cm (24″)
-
Felix Schoeller J22270 True Fibre Matt 200
Product Series: TRUE
Product Category: Special-Coated Matt Paper
Surface: Matt
Weight: 200 g/m²
Whiteness: Natural White
Application Segment: Professional Photo & Fine Art
Thickness in µm : 303
Thickness in mil: 11.9
CIE whiteness (D65/10°): > 78
CIELab : Colour Elrepho UVO (D65): L: 97,8 ± 1,0; a: 0,2 ± 0,5; b: 2,35 ± 1,0; delta b: -0,7 ± 0,8
Opacity : > 93
Standard Formats Rolls
Ø Core: 3″ Core
Roll Length: 30m
Width: 61cm (24″)
-
Felix Schoeller J24000 True Rag Silk Satin 310
Product Series: TRUE
Product Category: Microporous Coated Rag Paper
Surface: Satin
Weight: 310 g/m²
Whiteness: Natural White
Application Segment: Professional Photo & Fine Art
Thickness in µm: 430
Thickness in mil: 17
CIE whiteness (D65/10°) : > 79
CIELab: Colour Elrepho UVO (D65): L: 97.3 ± 1.0; a: 0.4 ± 0.5; b: 2.0 ± 0.8; delta b: -0.4 ± 0.6
Opacity: > 98
Width: 61cm (24″); 111,8cm (44″)
-
Felix Schoeller J24470 True Rag Watercolor Matt 310
Product Series: TRUE
Product Category: Special-Coated Rag Paper
Surface: Matt
Weight: 310 g/m²
Whiteness: Natural White
Application Segment: Professional Photo & Fine Art
Thickness in µm : 500
Thickness in mil: 19.7
CIE whiteness (D65/10°): > 79
CIELab: Colour Elrepho UVO (D65): L: 97.3 ± 1.0; a: 0.4 ± 0.5; b: 2.2 ± 0.8; delta b: -0.5 ± 0.6
Opacity > 98
Width: 61cm (24″); 111,8cm (44″)
-
Felix Schoeller J24770 True Rag Etching Matt 310
Product Series: TRUE
Product Category: Special-Coated Rag Paper
Surface: Matt
Weight: 310 g/m²
Whiteness: Natural White
Application Segment: Professional Photo & Fine Art
Thickness in µm : 520
Thickness in mil: 20.5
CIE whiteness (D65/10°) : > 79
CIELab Colour Elrepho UVO (D65): L: 97.3 ± 1.0; a: 0.4 ± 0.5; b: 2.2 ± 0.8; delta b: -0.5 ± 0.6
Opacity: > 98
Width: 61cm (24″); 111,8cm (44″)
-
Felix Schoeller J93270 SCM Pro Matt 230
Product Series: SCM
Product Category: Special-Coated Matt Paper
Surface: Matt
Weight: 230 g/m²
Whiteness: Bright White
Application Segment: Photo Retail; Home & Office Series; Sign & Display Graphics; Paper
Thickness in µm: 265
Thickness in mil:10.4
CIE whiteness (D65/10°): > 140
CIELab: Colour Elrepho UVO (D65): L: 95,8 ± 1,0; a: -0,2 ± 0,5; b: -1,2 ± 1,0; delta b: 12,3 ± 0,8
Opacity: > 95
Rolls: Ø Core: 2″ Core
Roll Length: 30m
Width: 61cm (24″); 111,8cm (44″)
Sheets: Sheet formats A4; A3; A3+
-
Felix Schoeller J93770 True Ivory Matt 230
Product Series: TRUE
Product Category: Special-Coated Matt Paper
Surface: Matt
Weight: 230 g/m²
Whiteness: Ivory White
Application Segment: Professional Photo & Fine Art
Thickness in µm: 264
Thickness in mil : 10.4
CIE whiteness (D65/10°): > 100
CIELab: Colour Elrepho UVO (D65): L: 96,8 ± 1,0; a: -0,2 ± 0,5; b: 4,9 ± 1,0; delta b: 8,5 ± 0,8
Opacity > 96
Ø Core: 2″ Core
Roll Length: 30m
Width: 61cm (24″)
-
Felix Schoeller M52110 Live Photo Glossy 250
Product Series: LIVE
Product Category: Microporous Resin-Coated Paper
Surface: Glossy
Weight: 250 g/m²
Whiteness: Alpine White
Application Segment: Photo Retail/Dry Minilab Inkjet
Thickness in µm : 251
Thickness in mil: 9.9
CIE whiteness (D65/10°): > 136
CIELab Colour Elrepho UVO (D65): L: 94.1 ± 0.8; a: -0.1 ± 0.5; b: -1.8 ± 0.8; delta b: 10.1 ± 0.8
Opacity: > 92
Width: 12,7cm (5″); 15,2cm (6″); 20,3cm (8″); 25,4cm (10″); 30,5cm (12″)
-
Felix Schoeller M52710 Live Photo Lustre 250
Product Series: LIVE
Product Category: Microporous Resin-Coated Paper
Surface: Lustre
Weight: 250 g/m²
Whiteness: Alpine White
Application Segment: Photo Retail | Dry Minilab Inkjet
Thickness in µm: 241
Thickness in mil: 9.5
CIE whiteness (D65/10°): > 136
CIELab: Colour Elrepho UVO (D65): L: 94.2 ± 0.7; a: -0.2 ± 0.5; b: -1.8 ± 0.7; delta b: 9.8 ± 0.8
Opacity > 92
Width: 10,2cm (4″); 12,7cm (5″); 15,2cm (6″); 20,3cm (8″)
-
Felix Schoeller M62120 Live Photo Metallic Glossy 245
Product Series: LIVE
Product Category: Microporous Resin-Coated Paper
Surface: Metallic Glossy
Weight: 245 g/m²
Whiteness: Metallic
Application Segment: Photo Retail/Dry Minilab Inkjet
Thickness in µm : 235
Thickness in mil: 9.3
CIE whiteness (D65/10°): > 123
CIELab: Colour Elrepho UVO (D65): L: 91,0 ± 0,8; a: 0,2 ± 0,5; b: -5,2 ± 0,8; delta b: 5,2 ± 0,8
Opacity: > 96
Ø Core: 3″ Core
Roll Length: 65m
Width: 15,2cm( 6″); 20,3cm (8″); 21cm
-
Felix Schoeller M62610 Live Photo Pyramid 250
Product Series: LIVE
Product Category: Microporous Resin-Coated Paper
Surface: Pyramid
Weight: 250 g/m²
Whiteness: Alpine White
Application Segment: Photo Retail/Dry Minilab Inkjet
Thickness in µm: 256
Thickness in mil: 10.1
CIE whiteness (D65/10°) : > 136
CIELab: Colour Elrepho UVO (D65): L: 94,0 ± 0,7; a: -0,2 ± 0,5; b: -1,8 ± 0,7; delta b: 9,8 ± 0,8
Opacity: > 92
Ø Core: 3″ Core
Roll Length: 65m; 101m
Width: 20,3cm (8″); 30,5cm (12″); 17″; 24″
-
Felix Schoeller P50311 Trust Premium Satin 200
Product Category: Microporous Resin-Coated Paper
Surface: Satin
Weight: 200 g/m²
Application Segment: Proof & Prepress/Fogra 51/Gracol 2013
Thickness in µm : 208
Thickness in mil: 8.2
CIELab : i1 Pro2: L M0: 95,6; a M0: 1,0; b M0: -4,0; L M1: 95,6; a M1: 1,2; b M1: -5,3
Colour Elrepho UVO (D65): L: 94,5 ± 0,5; a: 0,5 ± 0,3; b: -1,6 ± 0,5; delta b: 2,8 ± 0,5
Opacity > 92
Ø Core: 3″ Core
Roll Length: 30m
Width: 61cm (24″)
-
Felix Schoeller P51311 Trust Premium Satin 250
Product Category: Microporous Resin-Coated Paper
Surface: Satin
Weight: 250 g/m²
Application Segment: Proof & Prepress/Fogra 51/Gracol 2013
Thickness in µm: 248
Thickness in mil: 9.8
CIELab: i1 Pro2: L M0: 96,8; a M0: 0,8; b M0: -3,8; L M1: 96,8; a M1: 0,9; b M1: -5,1
Colour Elrepho UVO (D65): L: 94,5 ± 0,5; a: 0,5 ± 0,3; b: -1,6 ± 0,5; delta b: 2,8 ± 0,5
Opacity: > 95
Ø Core: 3″ Core
Roll Length: 30m
Width: 61cm (24″)
-
Felix Schoeller W50482 StyLine® Hamburg Matt 180
Product Series: STYLine®
Product Category: Uncoated nonwoven
Surface: Matt
Weight: 180 g/m²
Whiteness: White
Application Segment: Wall Decoration/Digital Wallpaper
Thickness in µm : 300
Thickness in mil: 11.8
CIE whiteness (D65/10°) : > 97
CIELab: Colour Elrepho UVO (D65): L: 97,7 ± 0,8; a: 0,1 ± 0,5; b: 2,7 ± 0,8; delta b: 3,8 ± 0,8
Opacity: > 90
Ø Core: 3″ Core
Roll Length: 30 m; 50 m; 170 m; 2500 m
Width: 152,4cm (60″)
-
Felix Schoeller W76471 Styline® New York Matt 170
Product Series: STYLine®
Product Category: Coated Nonwoven
Surface: Matt
Weight: 170 g/m²
Whiteness: White
Application Segment: Wall Decoration/Digital Wallpaper
Thickness in µm: 271
Thickness in mil: 10.7
CIE whiteness (D65/10°): > 97
CIELab: Colour Elrepho UVO (D65): L: 97,7 ± 0,8; a: 0,1 ± 0,5; b: 2,7 ± 0,8; delta b: 3,4 ± 0,8
Opacity: > 90
Ø Core: 3″ Core
Roll Length: 30 m; 50 m
Width: 152,4cm (60″)
-
All in One Album Making Machine
Quality: Our all in one album machine is one of the finest quality album machine which is know for its quality and durability world wide
Speed: Faster and efficient. All in one album machine is one of the most fastest and energy efficient album making machines available in the market
Easy Operation: The machine is equipped with digital user control panel for easy operation
Full Control: Resources of the machine such as air-pressure, temperature etc can be fully controlled withe the help of digital interface
Simple operation, the combination of electric and pneumatic principle, each step is easy to operate
Continuity of operations, increase work efficiency
Stable control system, easy operating and compact multi functional design
All in one , in different directions operation
-
-
-
-
-
Canon imagepress C650
Print speed: up to 65 ppm
Recommended Monthly Volume: 15,000 to 120,000 pages (A4)
Maximum Monthly Peak Volume: Up to 350,000 pages (A4)
Registration Tolerance: Front to Back: 1.0 mm
Printing method: Colour Laser Beam Printing
Print Resolution: 2,400 dpi x 2,400 dpi, 256 gradations
Paper Capacity
Standard: 3 x 550-sheet cassettes (80 gsm)
Option: 100-sheet multi-purpose tray
POD Deck Lite-C1: 1 x 3500 sheet side paper deck (A4/A3/SRA3)
Multi-drawer paper deck-C1: 1 x 6,000 sheet (3 x 2,000 sheets – A4/A3/SRA3)
Maximum paper input capacity: 7,650 sheets (A4/A3)
Maximum paper output capacity: 11,200 sheets (A4 80 gsm)
Supported media types:
Cassettes: Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Pre-punched paper, Bond, Letterhead, Tab paper*, Transparency, Envelopes**
Multi-purpose tray: Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Coated paper, Pre-punched paper, Tab paper, Bond, Transparency, Label, Envelopes, Letterhead
Optional Paper deck: Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Pre-punched paper, Coated paper , Textured, Bond, Transparency, Label, Letterhead, Tab paper, Envelopes
Supported media sizes: Paper cassette 1, 2 & 3:
Standard size: A4, A4R, A5R, A3, SRA3, 13″”x19″” (330 x 483 mm)
Free size: 100 mm x 148 mm to 330.2 mm x 487.7 mm
Multi-purpose tray:
Standard size: A4, A4R, A5R, A3, SRA3, 13″”x19″” (330 x 483 mm)
Free size: 100 x 148 mm to 330.2 x 487.7 mm
Envelopes: No.10 (COM10), Monarch, ISO-C5, DL
*Up to 330.2 x 762mm supported in special mode made available by a technitian
Supported media weights Cassettes: 52 to 220 gsm
Multi-purpose tray/Optional Paper deck : 52 to 300 gsm
Duplex: 52 to 300 gsm
Warm-up Time: Approx. 360 seconds
Interface type: USB 2.0 Hi-speed
Ethernet: 1000 BaseT/100Base -TX/10Base-T
Standard: 1 x USB Host *1 of left side of PRISMAsync oreration panel
Network protocols: TCP/IP* (LPD/Port 9100/WSD/IPP/IPPS/SMB/FTP), IPX/SPX (NDS, Bindery), AppleTalk
Processor Speed: 1.66 GHz (SOC ARM 1136JF-S 400 MHz、ARM 946 200 MHz)
Memory: 1.5GB（SOC 2GB)
Hard Disk drive: Standard 1TB Hard Disk Drive
Control panel (EFI/Canon PS/PCL)
Upright Control Panel G1: 26.4 cm (10.4 inch) TFT SVGA LED Backlight Colour Uplight Touchscreen
Control panel (PRISMAsync)
Operating Panel-A5: 15 inch touch panel screen
Dimensions (W x D x H): 1,952 mm* x 934 mm x 1,424 mm** (W x D x H)
Minimum Installation space (W x D): 1,952 (W) x 1,624 (D) mm
Weight: Approx 316kg *includes ADF
-
Canon imagePRESS C750 / C850
General Specifications
Print speed
imagePRESS C850: up to 85 ppm
imagePRESS C750: up to 75 ppmRecommended Monthly Volume
imagePRESS C850: 15,000 to 150,000 pages (A4)
imagePRESS C750: 15,000 to 120,000 pages (A4)Maximum Monthly Peak Volume
Up to 500,000 pages (A4)
Registration Tolerance
Front to Back: 1.0 mm or less
Printing method
Colour Laser Beam Printing
Print Resolution
2,400 dpi x 2,400 dpi, 256 gradations
Paper Capacity
Standard: 3 x 550-sheet cassettes (80 gsm)
Option: 100-sheet multi-purpose tray
POD Deck Lite-C1: 1 x 3500 sheet side paper deck (A4/A3/SRA3)
Multi-drawer paper deck-C1: 1 x 6,000 sheet (3 x 2,000 sheets – A4/A3/SRA3)
Maximum paper input capacity
7,650 sheets (A4/A3)
Maximum paper output capacity
11,200 sheets (A4 80 gsm)
Supported media types
Cassettes:
Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Pre-punched paper, Bond, Letterhead, Tab paper*, Transparency, Envelopes**
Multi-purpose tray :
Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Coated paper, Pre-punched paper, Tab paper, Bond, Transparency, Label, Envelopes, Letterhead
Optional Paper decks:
Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Pre-punched paper, Coated paper , Textured, Bond, Transparency, Label, Letterhead, Tab paper***, Envelopes
* Requires Tab feeding attachment
** Requires Envelope feeding attachment
*** Only compatible with Multi Drawer Paper Deck-C1
Supported media sizes
Paper cassette 1, 2 & 3:
Standard size: A4, A4R, A5R, A3, SRA3, 13″x19″ (330 x 483 mm)
Free size: 100 mm x 148 mm to 330.2 mm x 487.7 mm
Envelopes: No.10 (COM10), Monarch, ISO-C5, DL
Multi-purpose tray:
Standard size: A4, A4R, A5R, A3, SRA3, 13″x19″ (330 x 483 mm)
Free size: 100 x 148 mm to 330.2 x 487.7 mm
Long sheet: Up to 330.2 x 762 mm
Supported media weights
Cassettes: 52 to 220 gsm
Multi-purpose tray/Optional Paper decks : 52 to 300 gsm
Duplex: 52 to 300 gsmWarm-up Time
Approx. 360 seconds
Interface type
USB 2.0 Hi-speed
Ethernet: 1000 BaseT/100Base -TX/10Base-T
Standard: 1 x USB Host
*1 on left side of PRISMAsync operation panelNetwork protocols
TCP/IP* (LPD/Port 9100/WSD/IPP/IPPS/SMB/FTP), IPX/SPX (NDS, Bindery), AppleTalk
*IPv4/IPv6 supportProcessor Speed
1.66 GHz (SOC ARM 1136JF-S 400 MHz、ARM 946 200 MHz)
Memory
1.5GB（SOC 2GB)
Hard Disk drive
Standard 1TB Hard Disk Drive
Control panel (EFI/Canon PS/PCL)
Upright Control Panel G1: 26.4 cm (10.4 inch) TFT SVGA LED Backlight Colour Uplight Touchscreen
Control panel (PRISMAsync)
Operating Panel-D1: 15 inch touch panel screen
Dimensions (W x D x H)
1,952 mm* x 934 mm x 1,424 mm** (W x D x H)
* Includes Operator Panel and Out put tray option
** Includes Operator Panel Height to ADF is 1,222.2mmMinimum Installation space (W x D)
1,952 (W) x 1,624 (D) mm
Weight
Approx 316kg *includes ADF
Operating Environment
Temperature: 20 to 27ºC (50 to 86ºF)
Humidity: 15 to 60 % RH (no condensation)Power Source
220-240 V (±10 %), 50/60 Hz (±2 Hz), 16A x 2 *All Europe
220-240 V (±10 %), 50/60 Hz (±2 Hz), 13A x 2 *UKPower Consumption
Maximum: Approx 1,560W (at power supply) or less + 2,500W (at fusing unit) or less
Plug In-Off mode: Approx. 1.0Wh or less
Sleep mode: Approx. 1.5Wh or less
Typical Electricity Consumption (TEC) rating: 10.7kwh in imagePRESS C850 85ppm; 9.9kwh in imagePRESS C750 75ppmNoise levels (BW/CL)
Sound Pressure
Active: 75dB or less, Standby: 56dB or less -
Canon imagePRESS C850
Print speed
imagePRESS C850: up to 85 ppm
imagePRESS C750: up to 75 ppm
________________________________________________________________________
Recommended Monthly Volume
imagePRESS C850: 15,000 to 150,000 pages (A4)
imagePRESS C750: 15,000 to 120,000 pages (A4)
________________________________________________________________________
Maximum Monthly Peak Volume
imagePRESS C850: Up to 500,000 pages (A4)
imagePRESS C750: Up to 400,000 pages (A4)
________________________________________________________________________
Registration tolerance
Front to Back: 1.0 mm or less
________________________________________________________________________
Printing method
Colour Laser Beam Printing
________________________________________________________________________
Paper Capacity
Standard: 3 x 550-sheet cassettes (80 gsm)
Option: 100-sheet multi-purpose tray
POD Deck Lite-C1: 1 x 3,500 sheet side paper deck (A4/A3/SRA3)
POD Deck Lite XL-A1: 1x 3,500 sheet side paper deck (A4/A3/SRA3), 1x 1,000 sheets of length > 487.7 mm
Multi-drawer Paper Deck-C1: 1 x 6,000 sheet (3 x 2,000 sheets – A4/A3/SRA3)
________________________________________________________________________
Maximum paper input capacity
7,650 sheets (A4/A3)
________________________________________________________________________
Maximum paper output capacity
11,200 sheets (A4, 80 gsm)
________________________________________________________________________
-
Canon imagePROGRAF iPF510
- Printer Type: 5-Color 17-inch Printer
Standard Interfaces: USB 2.0 High-Speed; 10/100 Base-T/TX
Optional: IEEE 1394 (Firewire®)
Ink Droplet Size: 4 picoliter
Ink Capacity: 130ml per color2
Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black (two channels)
Media Width Cut Sheet with Optional Roll Unit: 8 – 17
Media Thickness Top Loading Manual Feed: 0.07 – 0.8mm (2.8 – 31.4mil)
Front Loading Manual Feed: 0.5 – 1.5mm (19.6 – 59.0mil)
With Optional Roll Unit: 0.07 – 0.8mm (2.8 – 31.4mil)
Paper Feed Method Top Loading Manual Feed: One sheet, front output
Front Loading Manual Feed: One sheet, front output
Roll Feed (Optional): One Roll, front output
Physical Dimensions: 12.5 (H) x 32.2 (W) x 28.9 (D)
Weight Approximately: 86 lbs.
User-replaceable items: Print Head (PF-03)
Ink Tanks: (PFI-102)
Maintenance Cartridge: (MC-05)
- Printer Type: 5-Color 17-inch Printer
-
Canon imagePROGRAF iPF610
Main Product Specs
Printer Type 5-Color 24-inch Printer Print Resolution (Up to) 2,400 x 1,200 dpi (Max) Standard Interfaces USB 2.0 High-Speed
10/100 Base-T/TX
Optional: IEEE 1394 (Firewire®)Ink Droplet Size 4 picoliter Ink Capacity 130ml per color2 Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black (two channels)Media Width Cut Sheet and Roll: 8 – 24
Cassette: 8 – 17Media Thickness Top Loading Manual Feed: 0.07 – 0.8mm (2.8 – 31.4mil)
Front Loading Manual Feed: 0.5 – 1.5mm (19.6 – 59.0mil)
Roll: 0.08 – 0.8mm (2.8 – 31.4mil)
Cassette: 0.08 – 0.3mm (3.2 – 11.8mil)Paper Feed Method Roll Feed: One Roll, front output
Top Loading Manual Feed: One sheet, front output
Front Loading Manual Feed: One sheet, front output
Cassette: Up to 250 Sheets (Letter, Plain Paper), front outputPhysical Dimensions 38.9 (H) x 39.3 (W) x 39 (D) Weight Approximately 149.9 lbs with stand User-replaceable items Print Head (PF-03), Maintenance Cartridge (MC-16) -
Canon imagePROGRAF iPF670
Main Product Specs
Printer Type 5-Color 24-inch Printer Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TXInk Droplet Size 4 picoliter Ink Capacity 130ml per color2 Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte BlackMedia Width Cut Sheet: 8- 24 (203.2mm – 610mm)
Roll Feed: 10 – 24 (254mm – 610mm)Media Thickness 0.07-0.8mm (2.8-31.4mil) Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front outputPhysical Dimensions 42 (H) x 39 (W) x 34 (D) (When basket is open)
42” (H) x 39” (W) x 28” (D) (When basket is closed)
20 (H) x 39 (W) x 27 (D) (Without stand)Weight Approximately 116 lb. with stand
Approximately 95 lb. without stand Box Dimensions/ Weight: 42 (H) x 44 (W) x 33(D), 196 lb. with stand
30 (H) x 44 (W) x 33(D), 158 lb. without standUser-replaceable items Print Head: PF-04
Maintenance Cartridge: MC-10
Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK) -
Canon imagePROGRAF iPF680
Main Product Specs
Printer Type 5-Color 36-inch Printer Print Resolution (Up to) 2,400 x 1,200 dpi (Max) Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TXInk Droplet Size 4 picoliter Ink Capacity 130ml or 300ml per color4 Color Set Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black Media Width Cut Sheet – 8- 36 (203.2mm – 914mm)
Roll Feed – 10 – 36 (254mm – 914mm)Media Thickness Cut Sheet – 8- 24 (203.2mm – 610mm)
Roll Feed – 10 – 24 (254mm – 610mm)Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front outputPhysical Dimensions 42 (H) x 39 (W) x 35 (D) (When basket is open)
42 (H) x 39 (W) x 43 (D) (When basket is extended for flatbed stacking) Box Dimensions/ Weight: 45 (H) x 44 (W) x 35 (D)Weight Approximately 125lbs. with stand User-replaceable items Print Head: PF-04
Maintenance Cartridge: MC-10
Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK) -
Canon imagePROGRAF iPF685
Main Product Specs
Printer Type 5-Color 24-inch Printer Print Resolution (Up to) 2,400 x 1,200 dpi (Max) Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TXInk Droplet Size 4 picoliter Ink Capacity 130ml or 300ml per color4 Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte BlackMedia Width Cut Sheet – 8- 24 (203.2mm – 610mm)
Roll Feed – 10 – 24 (254mm – 610mm)Media Thickness 0.07-0.8mm (2.8-31.4mil) Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front outputPhysical Dimensions 42 (H) x 39 (W) x 35 (D) (When basket is open)
42 (H) x 39 (W) x 43 (D) (When basket is extended for flatbed stacking) Box Dimensions/ Weight: 45 (H) x 44 (W) x 35 (D)
Approximately 205 lbsWeight Approximately 125lbs. with stand User-replaceable items Print Head: PF-04
Maintenance Cartridge: MC-10
Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK) -
Canon imagePROGRAF iPF770
Key features
High-volume continuous printing, with 130 ml hot-swap ink tanks that can be replaced while the unit is printing
A0 output in a Fast Economy mode in 48 seconds
Space-saving – Unique compact design to fit anywhere
Highly accurate with 0.02 mm minimum line width and +/-0.1 % line accuracy
5-colour dye-and-pigment ink system with new
magenta ink for reproduction of brighter red colour
Printing PDF / TIFF / JPEG / HP-GL2 easily, from general graphics to CAD and GIS drawings, with bundled Direct Print & Share Utility
Cloud-ready for immediate sharing, with easy access even from mobile devices
Use the bundled PosterArtist Lite software and Print Plug-in for Microsoft Office to create powerful large format posters with ease
Manage costs and track ROI with full counting tools -
Canon imagePROGRAF iPF770 MFP L36
Main Product Specs
Printer Type 5-Color 36-inch Printer Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TXInk Droplet Size 4 picoliter Ink Capacity 130ml per color Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte BlackMedia Width Cut Sheet – 8- 36 (203.2mm – 914mm)
Roll Feed – 10 – 36 (254mm – 914mm)Media Thickness 0.07-0.8mm (2.8-31.4mil) Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front outputPhysical Dimensions 42 (H) x 51 (W) x 34 (D) (with basket open) Weight Approximately 139 lbs. with stand User-replaceable items Print Head (PF-04)Maintenance Cartridge (MC-10)Ink Tanks (PFI-107: C, M, Y, BK, MBK) -
Canon imagePROGRAF iPF770 MFP M40
Features
Complete Scan-to-Print/File/Share Solution
M40 Scanner
SmartWorks MFP Software
SmartWorks MFP Plus Software
imagePROGRAF Print Utility2
Direct Print & Share Cloud Portal Software
iPF770 36-inch Large Format Printer
Touch Screen Monitor
MFP Stand -
Canon imagePROGRAF iPF780
Main Product Specs
Printer Type 5-Color 36-inch Printer Print Resolution (Up to) 2,400 x 1,200 dpi (Max) Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TXInk Droplet Size 4 picoliter Ink Capacity 130ml or 300ml per color4 Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte BlackMedia Width Cut Sheet – 8- 36 (203.2mm – 914mm)
Roll Feed – 10 – 36 (254mm – 914mm)Media Thickness 0.07-0.8mm (2.8-31.4mil) Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front outputPhysical Dimensions 42 (H) x 51 (W) x 35 (D) (When basket is open)
42 (H) x 51 (W) x 43 (D) (When basket is extended for flatbed stacking) Box Dimensions/ Weight: 31 (H) x 56 (W) x 46 (D)
Approximately 249 lbsWeight Approximately 150lbs. with stand User-replaceable items Print Head: PF-04, Maintenance Cartridge: MC-10, Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK) -
Canon imagePROGRAF iPF780 MFP M40
Printer Type: 5-Color 36-inch Printer
Number of Nozzles: Total: 15,360; MBK: 5,120 nozzles; C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch: 1,200 dpi; Non-firing nozzle detection and compensation
Print Resolution (Up to): 2,400 x 1,200 dpi (Max)
OS Compatibility: Windows® (XP/Vista/7/8); Macintosh® (OSX 10.6.8-10.9X)
Standard Interfaces: USB 2.0 High-Speed; 10/100/1000 Base-T/TX
Ink Droplet Size: 4 picoliter
Ink Capacity: 130ml or 300ml per color4
Ink Droplet Size: Dye/Pigment Reactive Ink
Color Set: Dye: Cyan, Magenta, Yellow, Black; Pigment: Matte Black
Buffer Ram: 256MB
Media Width: Cut Sheet – 8- 36 (203.2mm – 914mm); Roll Feed – 10 – 36 (254mm – 914mm)
Media Thickness: 0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length: Roll Feed – 59′ (18 meters) 5; Cut Sheet – 63 (1.6 meters)
Maximum Media Roll Diameter: 5.9 (150mm)
Borderless Printing Width: 10, B4, A3, 14, A2, 17, B2 (20.28/515 mm), A1 (23.38/594mm), 24, A0 (33.11/841mm), B1, 36
Paper Feed Method: Roll Feed: One Roll, Top-loading, Front output; Cut Sheet: One sheet, Top loading, Front output
Languages: GARO (Canon Proprietary)
Noise Level Approx: Operation: 48 dB (A) or less; Standby: 35 dB (A) or less; Acoustic Power: Approx. 6.5 Bels
Physical Dimensions: 42 (H) x 51 (W) x 35 (D) (When basket is open)
Box Dimensions/ Weight: 31 (H) x 56 (W) x 46 (D); Approximately 249 lbs
Weight: Approximately 150lbs. with stand
Power Source: AC-100-240V (50-60Hz)
Power Consumption: Maximum: 140W or less; Standby 5W or less; Power Off: .5W or less (Compliant with Executive Order)
-
Canon imagePROGRAF iPF785
Main Product Specs
Printer Type 5-Color 36-inch Printer Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TXInk Droplet Size 4 picoliter Ink Capacity 130ml or 300ml per color4 Color Set Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black Media Width CCut Sheet – 8- 36 (203.2mm – 914mm)
Roll Feed – 10 – 36 (254mm – 914mm)Media Thickness 0.07-0.8mm (2.8-31.4mil) Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front outputPhysical Dimensions 42 (H) x 51 (W) x 35 (D) (When basket is open)
42 (H) x 51 (W) x 43 (D) (When basket is extended for flatbed stacking)Box Dimensions: 31 (H) x 56 (W) x 46 (D)Weight Approximately 150lbs. with stand Box Weight: Approximately 249 lbs User-replaceable items Print Head: PF-04, Maintenance Cartridge: MC-10, Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK) -
Canon imagePROGRAF iPF785 MFP M40
Main Product Specs
Printer Type 5-Color 36-inch Printer Print Resolution (Up to) 2,400 x 1,200 dpi (Max) Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TXInk Droplet Size 4 picoliter Ink Capacity 130ml or 300ml per color4 Color Set Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black Media Width Cut Sheet – 8- 36 (203.2mm – 914mm)
Roll Feed – 10 – 36 (254mm – 914mm)Media Thickness Cut Sheet – 8- 36 (203.2mm – 914mm)
Roll Feed – 10” – 36” (254mm – 914mm)Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front outputPhysical Dimensions 42 (H) x 51 (W) x 35 (D) (When basket is open)
42 (H) x 51 (W) x 43 (D) (When basket is extended for flatbed stacking)Box Dimensions: 31 (H) x 56 (W) x 46 (D)Weight Approximately 150lbs. with stand Box Weight: Approximately 249 lbs
Power SourceUser-replaceable items Print Head: PF-04, Maintenance Cartridge: MC-10, Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK) -
Canon imagePROGRAF iPF830
BASE SPECIFICATIONS
Class: 5 Colour – 44″/1117.6mm
Ink Type: Dye and Pigment reactive ink: BK, MBK, C, M, Y
Maximum Print Resolution: 2,400 x 1,200 dpi
Printing Speed: Plain Paper (A0 Roll)
- 0:42 min (Fast Economy Mode)
- 0:45 min (Fast Mode)
- 1:12 min (Standard Mode)
- Coated Paper (A0 Roll)
- 1:12 min (Fast Mode)
- 2:19 min (Standard Mode)
- 3:37 min (High Quality Mode)
Dimensions, Weight: Main unit and Printer Stand (with basket open)
- 1893 (W) x 975 (D) x 1144 (H) mm
- 138 kg Approximately (roll holder included, no inks, no print heads)
_______________________________________________________________________________________
PRINT HEAD
Model: PF-04
Type: Canon Bubblejet on Demand
Head Configuration: 6 colours integrated type (6 chips per print head x 1 print head)
Nozzle Pitch: 1200 dpi x 2
Nozzle per Chip: 1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
Droplet Size: 4 Picoliter per colour
_______________________________________________________________________________________
MEDIA HANDLING
Roll Paper: One Roll, front loading, front output
Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)
Media Thickness: 0.07 – 0.8 mm
Maximum outside diameter of Roll Paper: 150.0 mm
Media Core Size: Internal diameter of roll core: 2″ / 3″
Media Width: Roll paper 254 – 1,118 mm; Cut sheet 203 – 1,118 mm
Minimal Printable Paper Length: 203 mm
Maximum Printable Paper Length: Roll paper 18 m (Varies according to the OS and application); Cut sheet 1.6 m
Margins (Top, Bottoms, Sides): Roll Paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm;
Roll Paper (Borderless Printing): Top: 0 mm, Bottom: 0 mm, Side: 0 mm;
Cut Sheet: Top: 3 mm, Bottom: 23 mm, Side: 3 mm
_______________________________________________________________________________________
-
Canon imagePROGRAF iPF830 MFP M40
Printer Type: 5-Color 44-inch Printer
Scanner Type:Contact Image Sensor (CIS) technology; Scan Accuracy: +/- 0.1%; Speed: 13 ips monochrome, 3 ips color
Nozzle Pitch: 1,200 dpi; Non-firing nozzle detection and compensation
Number of Nozzles: Total: 15,360; MBK: 5,120 nozzles; C, M, Y, BK: 2,560 nozzles each
OS Compatibility: Windows® (XP 32bit/Vista/7/8/8.1); Macintosh® (OSX 10.6.8-10.10)
Standard Interfaces: USB 2.0 High-Speed; 10/100/1000 Base-T/TX
Ink Droplet Size:4 picoliter
Ink Capacity: 330ml , 700ml per color2
Ink Droplet Size: Dye/Pigment Reactive Ink
Color Set: Dye: Cyan, Magenta, Yellow, Black; Pigment: Matte Black
Hard Drive: 320GB
Paper Sizes (Scanner): Width: 42 inch document width (40 inch image width); Length 315 (JPG or PDF), 590 (TIFF)
Media Width: Cut Sheet – 8 – 44; Roll Feed – 10 – 44;
Media Thickness: 0.07-0.8mm (2.8-31.4mil); Scanner: 0.079in (2mm)
Maximum Roll Print Length: Roll Feed – 59′ 3; Cut Sheet – 63
Maximum Media Roll Diameter: 5.9
Borderless Printing Width: 10, 14, 17, 24, 36, 42
Paper Feed Method: Roll Feed: One Roll, Top-loading, Front output; Cut Sheet: One sheet, Top loading, Front output
Languages: GARO (Canon Proprietary), HP-GL/2, HP-RTL
Noise Level Approx: Operation: 52 dB (A); Standby: 35 dB (A) or less; Acoustic Power: Approx. 6.8 Bels
Physical Dimensions: 75(W)x 51(D)x 45(H)
Weight: Approximately 380lbs
Power Source: AC-100-240V (50-60Hz)
Power Consumption: Maximum: 190W or less; Standby 5W or less; Power Off: .5W or less (Compliant with Executive Order)
Print Resolution: 2,400 x 1,200 dpi (Max)
Scanner: Optical Resolutions: 1200dpi (Adjustable from 100 dpi to 2,400 dpi); Max. Resolutions: 9600dpi interpolated
-
Canon imagePROGRAF iPF840
BASE SPECIFICATIONS
Class: 5 Colour – 44″/1117.6mm
Ink Type:Dye and Pigment reactive ink: BK, MBK, C, M, Y
Maximum Print Resolution: 2,400 x 1,200 dpi
Printing Speed:Plain Paper (A0 Roll): 0:42 min (Fast Economy Mode); 0:45 min (Fast Mode); 1:12 min (Standard Mode)
Dimensions, Weight: Main unit with printer stand, lower roll, lower rail L/R, and portable basket
1893 (W) x 1291 (D) x 1144 (H) mm
Weight: approx.189kg (roll holder included, no inks, no print heads)
Standard Memory:32GB (512MB)
_________________________________________________________________________________________
PRINT HEAD
Model: PF-04
Type:Canon Bubblejet on Demand
Head Configuration:6 colours integrated type (6 chips per print head x 1 print head)
Nozzle per Chip:1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
Droplet Size:4 Picoliter per colour
_________________________________________________________________________________________
MEDIA HANDLING
Roll Paper:Roll: Two Roll, front loading, front output
Cut Sheet:Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)
Media Thickness:0.07 – 0.8 mm
Maximum outside diameter of Roll Paper:150.0 mm
Media Core Size:Internal diameter of roll core: 2″ / 3″
Media Width:Roll paper 254 – 1,118 mm;Cut sheet 203 – 1,118 mm
Maximum Printable Paper Length:Roll paper 18 m (Varies according to the OS and application); Cut sheet 1.6 m
Margins (Top, Bottoms, Sides):Roll Paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm; Roll Paper (Borderless Printing): Top: 0 mm, Bottom: 0 mm;
_________________________________________________________________________________________
-
Canon imagePROGRAF iPF840 MFP M40
MAIN UNIT SPECIFICATIONS:
Printer Type Scanner Type
Contact Image Sensor (CIS) technology
Scan Accuracy: +/- 0.1%
Scan Speed: 13 ips monochrome, 3 ips colorNozzle Pitch Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles eachOS Compatibility Windows® (XP 32bit/Vista/7/8/8.1)
Macintosh® (OSX10.6.8 – 10.10)Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX
Scanner: USB 3.0 and USB 2.0 High-SpeedInk Droplet Size 4 picoliter Ink Capacity 330ml , 700ml per color2 Ink Droplet Size Dye/Pigment Reactive Ink Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte BlackHard Drive 320MB Paper Sizes Scanner:
Width: 42 inch document width (40 inch image width)
Length: 315 (JPG or PDF), 590 (TIFF)Media Width Cut Sheet – 8 – 44
Roll Feed – 10 – 44Media Thickness 0.07-0.8mm
Scanner0.079in (2mm)Maximum Roll Print Length Roll Feed – 59′ 3 Cut Sheet – 63 Maximum Media Roll Diameter 5.9 Borderless Printing Width 10, 14, 17, 24, 36, 42 Paper Feed Method Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front outputLanguages GARO (Canon Proprietary) HP-GL/2, HP-RTL Noise Level Approx Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.8 Bels or lessPhysical Dimensions 75(W)x 51(D)x 45(H)
Box Dimensions
84(W)x62(D)x46(H)Weight Approximately 417lbs
Box Weight Approximately 697lbsPower Source AC-100-240V (50-60Hz) Power Consumption Maximum: 190W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)Operating Environment Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Operating System: Windows 7
All-in-One HD Multi-touch PCUser-replaceable items Print Head: PF-04Maintenance Cartridge: MC-10, MC-09Ink Tanks:
PFI-307 (330ml: C, M, Y, BK, MBK)
PFI-707 (700ml: C, M, Y, BK, MBK)Software Included SmartWorks MFP, Direct Print & Share -
Canon imagePROGRAF iPF8400S
- Printer Type: 8-Color 44-inch Printer
Print Resolution(Up to): 2,400 x 1,200 dpi (Max)
Standard Interfaces: USB 2.0 High-Speed; 10/100/1000 Base-T/TX
Ink Droplet Size: 4 picoliter
Ink Capacity: 330 and 700ml per color available
Color Set: Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Gray
Media Width Cut Sheet: 8 – 44
Roll: 10 – 44
Media Thickness Front Loading Manual Feed: 0.07 – 0.8mm (2.8 – 31.4mil)
Roll: 0.07 – 0.8mm (2.8 – 31.4mil)
Paper Feed Method Roll Feed: One Roll, front output
Front Loading Manual Feed: One sheet, front output
Physical Dimensions: 45 (H) x 74.5 (W) x 38.4 (D)
Weight Approximately: 315lbs. with stand
User-replaceable items: Print Head (PF-05), Maintenance Cartridge (MC-08), Durable Rotary Media Cutter (CT-06), Ink Tanks (PFI-306, PFI-706)
- Printer Type: 8-Color 44-inch Printer
-
Canon imagePROGRAF iPF850
Class: 5 Colour – 44″/1117.6mm
Ink Type: Dye and Pigment reactive ink: BK, MBK, C, M, Y
Maximum Print Resolution: 2,400 x 1,200 dpi
Printing Speed: Plain Paper (A0 Roll): 0:42 min (Fast Economy Mode); 0:45 min (Fast Mode); 1:12 min (Standard Mode)
Coated Paper (A0 Roll): 1:12 min (Fast Mode); 2:19 min (Standard Mode); 3:37 min (High Quality Mode)
Dimensions, Weight: Main unit with printer stand, lower roll, lower rail L/R, and Stacker; 1893 (W) x 1320 (D) x 1144 (H) mm
Weight: approx.213kg (roll holder included, no inks, no print heads)
Display Large LCD: 160 x 128 dots; Key x 13, LED x 5
Standard Memory: 32GB (512MB)
Hard Disk: 320GB
Printer Language: GARO (Graphic Arts language with Raster Operations), HP-GL/2, HP RTL
Interface: Hi Speed USB Type: Built-in; USB 2.0 High-Speed Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
Print Head Model: PF-04
Head Configuration: 6 colours integrated type (6 chips per print head x 1 print head)
Nozzle Pitch: 1200 dpi x 2
Nozzle per Chip: 1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
Droplet Size: 4 Picoliter per colour
Roll Paper: Roll: Two Roll, front loading, front output
Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)
Media Thickness: 0.07 – 0.8 mm
Maximum outside diameter of Roll Paper: 150.0 mm
Media Core Size: Internal diameter of roll core: 2″ / 3″
Media Width: Roll paper 254 – 1,118 mm; Cut sheet 203 – 1,118 mm
Minimal Printable Paper Length: 203 mm
Maximum Printable Paper Length: Roll paper 18 m (Varies according to the OS and application); Cut sheet 1.6 m
Margins (Top, Bottoms, Sides): Roll Paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm;
Roll Paper (Borderless Printing): Top: 0 mm, Bottom: 0 mm, Side: 0 mm;
Cut Sheet: Top: 3 mm, Bottom: 23 mm, Side: 3 mm
Media Width for Borderless Printing: 1,030mm (JIS B0), 841mm (ISO A0), 594mm (ISO A1), 515mm (JIS B2), 42″, 36″, 24″,17″, 14″, 10″
-
Canon imagePROGRAF iPF850 MFP M40
Features
Complete Scan-to-Copy / File / E-mail / Cloud Connectivity and Print Solution
SingleSensor (CIS) for high quality and accurate scanning
Bi-directional LED light system for optimum object illumination and instant-on response
Up to 13 inches per second scanning
1200dpi optical resolution
22″ LCD Touchscreen interface
Next generation SmartWorks MFP Software for intuitive and flexible operation
Scan to PDF, JPEG and TIFF up to 15m in length
2,400 x 1,200 dpi fast printing with Flat Stacker/Basket
Optional: SmartWorks MFP Plus – Supports PDF/A, Multipage PDF, Open & Print none
SmartWorks MFP PDF files, Colour Adjustment (RGB) in Preview and Auto crop borders -
Canon imagePROGRAF MFP M40
Benefits
Complete Scan-to-Copy / File / E-mail / Cloud Connectivity and Print Solution
Customize your solution with a choice of configurations from 36″ to 44″
Interface options: 19.5” All-in One LCD Touch Panel PC or 22″ LCD Touch screen interface*
SingleSensor (CIS) Scanning with Bi-directional LED light system for incredible line definition and accuracy
Up to 13 inches per second scanning
1200dpi optical resolution
Next generation SmartWorks MFP Software for intuitive and flexible operation
Scan to PDF, JPEG and TIFF up to 15m in length
2,400 x 1,200 dpi fast printing with Flat Stacker/Basket
Optional: SmartWorks MFP Plus with updated user interface – provides additional file format support and functionality to SmartWorks MFP Software -
Canon imagePROGRAF PRO-1000
Main Unit Specs
Printer Type Wireless Professional Inkjet Printer Printing Method FINE: Full-Photolithography Inkjet Nozzle Engineering Features AirPrint4
Borderless Printing
Canon PRINT app5
Grayscale Photo Printing
Photo Printing
Wireless PictBridge6
Wireless Printing7
Pro Gallery Print8
PIXMA Cloud Link9Print Speed (up to) 17″ x 22″ Bordered Photo (Color):
Approx. 4 minutes 10 seconds3
13″ x 19″ Bordered Photo (Color):
Approx. 2 minute 30 seconds3Number of Nozzles 1,536 Nozzles x 12 Inks, Total: 18,432 Nozzle Pitch 600 dpi x 2 Print Resolution (Up to) Color: Up to 2400 x 1200 dpi4
Black: Up to 2400 x 1200 dpi4OS Compatibility Computer Operating Systems:
Mac:16 Mac OS X v10.7.5 – 10.10.x
Windows:17 Windows® 10, Windows® 8, Windows 8.1, Windows 7, Windows 7 SP1, Windows Vista® SP1, Vista SP2, Windows Server 2012,2012 R2, 2008,2008 R2
Mobile Operating Systems: iOS®, Android™Standard Interfaces Hi-Speed USB 2.0
Ethernet (10/100Base -T/TX)
PictBridge (Wireless LAN)6
Wireless LAN (IEEE 802.11b/g/n)7Ink Droplet Size 4 Picoliters per Ink Ink Capacity 80ml
Type: Pigment Based LUCIA PRO Ink TechnologyPaper Sizes 17″ x 22″, 14″ x 17″, 13″ x 19″, 11″ x 14″, 10″ x 12″, 8.5″ x 11″, 8″ x 10″, 5″ x 7″, 4″ x 6″ Maximum Paper Size 25.5″ Inches Media Thickness Rear Tray: Maximum 0.3 mm
Manual Feed Slot: 0.1 mm – 0.7 mmPaper Feed Method Rear Tray and Manual Feed Slot Languages Printer Languages:Printer Language: Swift Graphic Raster
Job Control Language: IVEC
Status Reply: IVECNoise Level Approx 41.0 dB(A)12 Physical Dimensions 28.5″ x 11.2″ x 17.1″ (W x H x D) Weight 71.2lbs Power Consumption Maximum: 37 W13
Standby: 2.5 W
Power Off: 0.4 WOperating Environment Temperature: 59 – 86 F° (15 – 30 C°)
Relative Humidity: 10 – 80% (No Condensation)Warranty 1-Year limited warranty with InstantExchange Program. 1-Year toll-free U.S.-based technical phone support.19 Software Included Setup Software & User’s Guide CD-ROM
imagePROGRAF PRO-1000 Printer Driver
Print Studio Pro v 2.018
Management Tools:
Quick Utility Toolbox
Media Configuration Tool
Accounting Manager
Device Management Console
Color Calibration ToolGeneral Features 12 Individual Ink Tanks, Advanced Pattern Print, Index Print, Fine Art Paper Support, L-COA PRO Image Processing Engine, Non-Firing and Compensation Function, Real Time Control of Ink Ejection, Air Feeding System, Color Density Sensor, Calibration Link, Contrast Reproduction Certifications Rated EPEAT Silver
Chlorine-free paper can be used.
Energy Star Certified
RoHS Directive CertificationPrinter Memory 1 GB (Standard) Display 3.0″ LCD Head Configuration 12 Ink Integrated Type (4 Ink Chips x 3) Storage Environment Temperature: 32 – 104 F° (0 – 40 C°)
Relative Humidity: 5 – 95% (No Condensation) -
Canon imagePROGRAF PRO-2000
- Printer Type: 12 Colour 24″/610mm
- Print Technology: Canon Bubblejet on Demand 12 colours integrated type (12 chips per print head x 1 print head)
- Print Resolution: 2,400 x 1200 dpi
- Number of Nozzles: 18,432 nozzles (1536 nozzles x 12 colour)
- Line Accuracy: ±0.1% or less. User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
- Nozzle Pitch: 600 dpi x 2 includes Non-firing nozzle detection and compensation system
- Ink Droplet Size: minimum 4 pl per colour
- Ink Capacity: Sales Ink: 160ml/330ml/700ml; Bundled Starter Ink: 160ml
- Ink Type: Pigment inks – Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue, Chroma Optimiser
- Printer languages: SG Raster (Swift Graphic Raster), PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
- Standard Interfaces: USB A Port: USB Memory Direct Print for JPEG/PDF files
USB B Port: Built-in Hi-Speed USB 2.0; Ethernet: 10/100/1000 base-T; Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b - Standard Memory: 3 GB
- Hard Drive: 320 GB
- Printing Speed: Media Type (A1 page size); Print Mode: Print Time
- Plain Paper (A1 page size): Fast: 0:58 min; Standard: 1:37 min
- Coated Paper (A1 page size): Standard: 1:37 min; High Quality: 3:12 min
- Glossy Photo Paper (A1 page size): Standard: 3:34 min; High Quality: 5:38 min; Output Image : ISO JIS SCID N5
- Media handling: Media Feed and Output; Upper Roll Paper: One Roll, Front-loading, Front Output; Lower Roll Paper: One Roll, Front-loading, Front Output; Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)
- Media Width: Roll paper: 203.2 – 610 mm; Cut sheet: 203.2 – 610 mm
- Media thickness: Roll/Cut: 0.07 – 0.8 mm
- Minimum Printable Length: 203.2 mm
- Maximum Printable Length: Roll paper: 18 m (Varies according to the OS and application); Cut sheet: 1.6 m
- Maximum Media Roll Diameter: 170 mm
- Media Core Size: Internal diameter of roll core: 2″/3″
- Margins Recommended area: Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm; Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
- Margins Printable area: Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm; Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm; Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
- Media Feed Capacity: Roll Paper: Two rolls. Automatic switching is possible; Cut Sheet: 1 sheet
- Media Take-up roll unit: Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll
- Borderless Printing Width (Roll Only): 515mm(JIS B2), 594mm(ISO A1), 10″, 14″, 17″, 24″, 257mm(JIS B4)*, 297mm(ISO A3)*, 329mm(ISO A3+)*, 420mm(ISO A2)*, 8″*, 16″*, 300mm*
*Some environmental conditions may not produce the desired result - Maximum number of delivered prints: Standard position: 1 sheet; Flat position: A2 landscape, glossy paper less than 10 sheets, Coated paper less than 20 sheets (excludes strong curled condition)
-
Canon imagePROGRAF PRO-4000
Main Product Specs
Printer Type 11-Color plus Chroma Optimizer 44-inch Printer Print Resolution (Up to) 2400×1200dpi (Max) Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n)Ink Droplet Size Minimum 4 picoliter Ink Capacity 160ml, 330ml, or 700ml per color* Color Set Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray, Red, Blue, +Chroma Optimizer Media Width Cut Sheet – 8- 44
Roll Feed – 8 – 44Media Thickness Roll: 0.07 – 0.8 mm (2.8 – 31.5mil) Paper Feed Method (Roll Media Only) 10, 14, 17, B2 (20.3/515 mm), A1 (23.4/594mm), 24
Roll Feed: One Roll, Front-loading, Front Output
Manual Feed: Front-loading, Front OutputPhysical Dimensions 46.0 (H) x 62.7 (W) x 38.7 (D) (with basket open) Weight Approx.271 lbs (roll holder included, no inks, no print heads) User-replaceable items Print Head (PF-10)
Maintenance Cartridge (MC-30)
Ink Tanks (PFI-1100/PFI-1300/PFI-1700) -
Canon imagePROGRAF PRO-4000S
Main Product Specs
Printer Type 8-Color 44-inch Printer Print Resolution (Up to) 2400×1200dpi (Max) Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n)Ink Droplet Size minimum 4 picoliter Ink Capacity 160ml, 330ml, or 700ml per color* Color Set Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray Media Width Cut Sheet – 8- 44
Roll Feed – 8 – 44Media Thickness Roll: 0.07 – 0.8 mm (2.8 – 31.5mil) Paper Feed Method Roll Feed: One Roll, Front-loading, Front Output Manual Feed: Front-loading, Front Output Physical Dimensions 46.0 (H) x 62.7 (W) x 38.7 (D) (with basket open) Weight Approx.267 lbs (roll holder included, no inks, no print heads)
Power SourceUser-replaceable items Print Head (PF-10)
Maintenance Cartridge (MC-30)
Ink Tanks (PFI-1100/PFI-1300/PFI-1700) -
Canon imagePROGRAF PRO-6000
Main Product Specs
Printer Type 11-Color plus Chroma Optimizer 60-inch Printer Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX Wireless LAN (IEEE 802.11 b/g/n)
USB Thumb DriveInk Droplet Size Minimum 4 picoliter Ink Capacity 160, 330, or 700ml per color* Color Set Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray, Red, Blue, +Chroma Optimizer Media Width Cut Sheet – 8- 60
Roll Feed – 8 – 60Media Thickness Roll: 0.07 – 0.8 mm (2.8 – 31.5mil) Paper Feed Method Roll Feed: One Roll, Front-loading, Front Output Manual Feed: Front-loading, Front Output Physical Dimensions 46.0 (H) x 78.7 (W) x 38.7 (D) (with basket open) Weight Approx.368 lbs (roll holder included, no inks, no print heads) User-replaceable items Print Head (PF-10)
Maintenance Cartridge (MC-30)
Ink Tanks (PFI-1100/PFI-1300/PFI-1700) -
Canon imagePROGRAF PRO-6000S
Main Product Specs
Printer Type 8-Color 60-inch Printer Print Resolution (Up to) 2400×1200dpi (Max) Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n)Ink Droplet Size minimum 4 picoliter Ink Capacity 160ml, 330ml, or 700ml per color* Color Set Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray Media Width Cut Sheet – 8- 60
Roll Feed – 8 – 60Media Thickness Roll: 0.07 – 0.8 mm (2.8 – 31.5mil) Paper Feed Method Roll Feed: One Roll, Front-loading, Front Output Manual Feed: Front-loading, Front Output Physical Dimensions 46.0 (H) x 78.7 (W) x 38.7 (D) (with basket open) Weight Approx.359 lbs (roll holder included, no inks, no print heads) User-replaceable items Print Head (PF-10)
Maintenance Cartridge (MC-30)
Ink Tanks (PFI-1100/PFI-1300/PFI-1700) -
Canon iPF 6400
PRINTING SPEED
Printing Speed (A1 Roll, Plain Paper): 1.2min (Fast Mode); 2.1min (Standard Mode)
Printing Speed (A1 Roll, Coated Paper): 2.2min (Standard Mode); 4.0min (High Quality Mode)
Printing Speed (A1 Roll, Photo Paper): 3.7min (Standard Mode); 5.0min (High Quality Mode)
_______________________________________________________________________________________________
PAPER HANDLING
Media Width: Roll paper and Manual Feed from top: 203.2 mm (8″) – 610 mm (24″); Manaul Feed from Front: 250 – 610 mm / POP board use only: A2, A1
Minimum Printable Length: Roll Paper: 203.2mm, Manual Feed from Top: 279.4mm, Manual Feed Front: 350mm
Media Thickness: Roll paper: 0.07 – 0.8mm, Cut sheet: Manual feed from top: 0.07 – 0.8mm;Manual feed from front: 0.5 – 1.5 mm
Maximum Media Roll Diameter;150.0 mm
Maximum Printable Length;Roll paper: 18m (Varies according to the OS and application);Manaul Feed from Top: 1.6m, Manaul Feed from Front: 914mm
Paper Feed Method:Roll Paper: One Roll (top-loading [front operation possible], front output);Cut Sheet: 1 sheet Front loading and top loading
_______________________________________________________________________________________________
MEDIA FEED CAPACITY
Manual Feed: 1 Sheet, Roll Feed: 1 Roll
_______________________________________________________________________________________________
TECHNOLOGY
Printer type12 colour:24″/609.6mm
Print technology:Canon Inkjet on Demand 6 colours integrated type (6 chips per print head x 2 print heads)
Number of nozzels:Total: 30,720 – BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B: 2,560 nozzles for each colour x 6 colours x 2 print heads
Nozzle pitch:1,200 x 2 includes Non-firing nozzle detection and compensation system
Ink capacity:Bundled Starter Ink: 90 ml;Sales Ink: 130ml and 300 ml
Ink type:LUCIA EX 12 Colour Pigment Ink;BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
OS compatibility:Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit);Macintosh OSX 10.5.8-10.7.x
_______________________________________________________________________________________________
-
Canon iPF 6400S
PAPER HANDLING
Media Width:Roll paper: 203.2mm – 610mm;Cut sheet: 203.2mm – 610mm
Minimum Printable Length:Roll: 203.2mm,;Cut Sheet: 279.4mm
Maximum Printable Length:18m (varies according to the OS and application)
Paper Feed Method:Roll Feed: One Roll, top loading, front output;Top Loading Manual Feed: One sheet, front output;Front Loading Manual Feed: One sheet
_________________________________________________________________________________________________________________________
PRINTING SPEED
Printing Speed (A1 Roll, Plain Paper):0:35 min (Fast Economy Mode);1:56 min (Standard Mode)
Printing Speed (A1 Roll, Coated Paper):1.02min (Fast Mode);1:56 min (Standard Mode)
Printing Speed (A1 Roll, Photo Paper):2.08min (Fast Mode);3.08min (Standard Mode)
_________________________________________________________________________________________________________________________
TECHNOLOGY
Printer Type:8 Colour – 24″/609.6mm
Print Technology:Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 2 print heads)
Number of Nozzles:Total: 30,720 – MBK/BK/M/Y: 2,560 nozzles for each colour, C/PC/PM/GY: 5,120 nozzles for each colour
Ink Capacity:Bundled Starter Ink: 90ml – BK/MBK/M/Y , 120ml – C/PC/PM/GY;Sales Ink: 130ml/300ml
Ink Type:Pigment ink: LUCIA EX;8 colour pigment ink: BK, MBK, C, M, Y, PC, PM, GY
OS Compatability:Windows: XP/ Vista/7/8/Server 2003/2003 R2,;Windows Server 2008 (32/64bit);Macintosh OSX 10.5.8-OS10.8.x
Standard Interfaces:USB 2.0 High-Speed;Ethernet 10/100/1000 Base-T/TX
__________________________________________________________________________________________________________________________
DIMENSIONS AND WEIGHT
Main unit with Auto Roll Feed Unit (standard): 1,227 (W) x 702 (D) x 344 (H) mm;
Weight: approx. 54kg (excluding consumables and a Printer Stand) Main unit with a basket open and printer stand: 1,227 (W) x 870 (D) x 1,001 (H) mm;
Weight: approx. 70kg (excluding consumables)
Basket closed: 1,227 (W) x 751 (D) x 1,001 (H) mm; Main unit with a basket open, a printer stand and pectrophotometer: 1,227 (W) x 970 (D) x 1,001 (H) mm;
Weight: approx. 91kg (excluding consumables)
Basket close: 1,227 (W) x 875(D) x 1,001 (H) mm
_________________________________________________________________________________________________________________________
-
Canon iPF 6450
PAPER HANDLING
Media Width: Roll paper and Manual Feed from top: 203.2 mm (8″) – 610 mm (24″); Manaul Feed from Front: 250 – 610 mm / POP board use only: A2, A1
Media Thickness: Roll paper: 0.07 – 0.8mm; Cut sheet: Manual feed from top: 0.07 – 0.8mm; Manual feed from front: 0.5 – 1.5 mm
Minimum Printable Length: Roll Paper: 203.2mm, Manual Feed from Top: 279.4mm, Manual Feed Front: 350mm;
Maximum Printable Length: 10″ (254 mm), B4 (257 mm), 14″ (356 mm), 16″ (407 mm), A2 (420 mm), A2+/17″ (432 mm), B2 (515 mm), A1 (594 mm), 24″ (610 mm)
Paper Feed Method: Roll Paper: One Roll (top-loading [front operation possible], front output); Cut Sheet: 1 sheet Front loading and top loading
Media Feed Capacity: Manual Feed: 1 Sheet; Roll Feed: 1 Roll
_______________________________________________________________________________________________________________________________
PRINTING SPEED
Printing Speed (A1 Roll, Plain Paper): 1.2min (Fast Mode);2.1min (Standard Mode)
Printing Speed (A1 Roll, Coated Paper): 2.2min (Standard Mode);4.0min (High Quality Mode)
Printing Speed (A1 Roll, Photo Paper): 3.7min (Standard Mode);5.0min (High Quality Mode)
______________________________________________________________________________________________________________________________
TECHNOLOGY
Printer Type: Canon Inkjet on Demand 6 colours integrated type (6 chips per print head x 2 print heads)
Number of Nozzles: Total: 30,720 – BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B: 2,560 nozzles for each colour x 6 colours x 2 print heads
Nozzle Pitch: 1,200 x 2 includes Non-firing nozzle detection and compensation system
Ink Capacity: Bundled Starter Ink: 90ml;Sales Ink: 130ml and 300ml
Ink Type: LUCIA EX 12 Colour Pigment Ink;BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
OS Compatability: Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit);Macintosh OSX 10.5.8-10.7.x
_______________________________________________________________________________________________________________________________
DIMENSIONS AND WEIGHT
Main unit with Auto Roll Feed Unit (standard) – 1,227 (W) x 702 (D) x 344 (H) mm; Weight: approx. 54kg (excluding consumables and printer Stand);
Main unit with a basket open and a printer stand – 1,227 (W) x 870 (D) x 1,001 (H) mm; Weight: approx. 70kg (excluding consumables)
Basket close: 1,227 (W) x 751 (D) x 1,001 (H) mm
_______________________________________________________________________________________________________________________________
-
CANON IPF 8400
PAPER HANDLING
Media Width: Roll paper: 254 – 1,117.6 mm; Cut sheet: 203.2 – 1,117.6 mm
Maximum Printable Length: Roll Paper: 18 m (Varies according to the OS and application); Cut Sheet: 1.6 m
Paper Feed Method: Roll Paper: One Roll (front-loading [front operation possible], front output); Cut Sheet: 1 sheet Front loading and front output
Borderless Printing Width (Roll Only): 515 mm (JIS B2), 1,030 mm (JIS B0), 594 mm (ISO A1), 841 mm (I SO A0), 10″, 14″, 17″, 24″, 36″, 42″, 44″
_____________________________________________________________________________________________________________________________________
PRINTING SPEED
Printing speed (A0 roll, Plain paper): 2.0min (Fast mode); 3.7min (Standard mode)
Printing speed (A0 Roll, Coated Paper): 3.7min (Standard Mode); 7.3min (High Quality Mode)
Printing speed (A0 Roll, Photo Paper): 6.0min (Standard Mode); 9.2min (High Quality Mode)
________________________________________________________________________________________________________________________________________
TECHNOLOGY
Printer Type: 12 Colour – 44″/1117.6mm
Print Technology: Canon Inkjet on Demand 6 colours integrated type (6 chips per print head x 2 print heads)
Number of Nozzles: Total: 30,720 – BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B: 2,560 nozzles for each colour x 6 colours x 2 print heads
Print Resolution: 2,400 x 1,200 dpi
Nozzle Pitch: 1,200 x 2 includes Non-firing nozzle detection and compensation system
Ink Capacity: Bundled Starter Ink: 330ml;Sales Ink: 330ml or 700ml
Ink Type: LUCIA EX 12 Colour Pigment Ink; BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
OS Compatability: Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit); Macintosh OSX 10.5.8-10.7.x
Printer Languages: GARO (Graphic Arts language with Raster Operations)
________________________________________________________________________________________________________________________________________
DIMENSIONS AND WEIGHT
1,893 (W) x 975 (D) x 1,144 (H) mm; Weight: approx. 143 kg (including Roll Holder Set; excluding ink and print heads)
_______________________________________________________________________________________________________________________________________
-
Canon iPF 9400
PAPER HANDLING
Media Width: Roll paper: 254 – 1524.0 mm ;Cut sheet: 203.2 – 1524.0 mm
Media Thickness: Roll Paper: 0.07 – 0.8mm; Cut Sheet: 0.07 – 0.8mm
Minimum Printable Length: 203.2mm
Maximum Printable Length: Roll Paper: 18 m ;Cut Sheet: 1.6 m
Paper Feed Method:Roll Paper: One Roll , Cut Sheet: 1 sheet Front loading and front output
Media Feed Capacity:Manual Feed: 1 Sheet, Roll Feed: 1 Roll
_____________________________________________________________________________________________________
PRINTING SPEED
Printing Speed (A0 Roll, Plain Paper): 2.0min (Fast Mode); 3.7min (Standard Mode)
Printing Speed (A0 Roll, Coated Paper): 3.7min (Standard Mode); 7.3min (High Quality Mode)
Printing Speed (A0 Roll, Photo Paper): 6.0min (Standard Mode); 9.2min (High Quality Mode)
_____________________________________________________________________________________________________
TECHNOLOGY
Printer Type:12 Colour – 60″/1524mm
Print Technology: Canon Inkjet on Demand 6 colours integrated type (6 chips per print head x 2 print heads)
Number of Nozzles:Total: 30,720 – BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B: 2,560 nozzles for each colour x 6 colours x 2 print heads
Print Resolution:2400 x 1200dpi
Ink Capacity:Bundled Starter Ink: 330ml;Sales Ink: 330ml or 700ml
Ink Type:LUCIA EX 12 Colour Pigment Ink;BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
OS Compatability:Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit), Macintosh OSX 10.5.8-10.7.x
Printer Languages:GARO (Graphic Arts language with Raster Operations)
Standard Interfaces:USB 2.0 High-Speed;Ethernet 10/100/1000 Base-T/TX
_____________________________________________________________________________________________________
-
Canon iPF 9400S
PAPER HANDLING
Media Width: Roll paper: 254 – 1524.0 mm; Cut sheet: 203.2 – 1524.0 mm
Minimum Printable Length: 203.2 mm
Maximum Printable Length: Roll Paper: 18 m (Varies according to the OS and application); Cut Sheet: 1.6 m
Media Feed Capacity: Manual Feed: 1 Sheet, Roll Feed: 1 Roll
Media Thickness: Roll Paper: 0.07 – 0.8mm; Cut Sheet: 0.07 – 0.8mm
Paper Feed Method: Roll Paper: One Roll (front-loading [front operation possible], front output); Cut Sheet: 1 sheet Front loading and front output
Borderless Printing Width (Roll Only): 515 mm (JIS B2), 1, 030 mm (JIS B0), 594 mm (ISO A1), 841 mm (ISO A0), 10″, 14″, 17″, 24″, 36″, 42″, 44″, 50″, 60″
___________________________________________________________________________________________________________
MEMORY
Buffer RAM: 640 Mb
Hard Drive: 250 Gb
___________________________________________________________________________________________________________
PRINTING SPEED
Printing Speed (A0 Roll, Plain Paper): 1.0min (Fast Economy Mode); 3.2min (Standard Mode)
Printing Speed (A0 Roll, Coated Paper): 1.7min (Fast Mode); 3.2min (Standard Mode)
Printing Speed (A0 Roll, Photo Paper): 3.2min (Fast Mode); 4.9min (Standard Mode)
___________________________________________________________________________________________________________
TECHNOLOGY
Printer Type: 8 Colour – 60″/1524mm
Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 2 print heads)
Number of Nozzles: Total: 30,720 – MBK/BK/M/Y: 2,560 nozzles for each colour, C/PC/PM/GY: 5,120 nozzles for each colour
Ink Capacity: Bundled Starter Ink: 330ml; Sales Ink: 330ml or 700ml
Ink Type: LUCIA EX 8 Colour Pigment Ink; BK, MBK, C, M, Y, PC, PM, GY
OS Compatability: Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit); Macintosh OSX 10.5.8-10.7.x
Standard Interfaces: USB 2.0 High-Speed; Ethernet 10/100/1000 Base-T/TX
___________________________________________________________________________________________________________
DIMENSIONS AND WEIGHT
2,299 (W) x 766 (D) x 1144 (H) mm; Weight: approx. 162 kg (including Roll Holder Set and Media Take-up Unit; excluding ink and print heads)
___________________________________________________________________________________________________________
-
-
Canon L36 Scanner
SCANNER TECHNOLOGY
Scan Technology: SingleSensor with multiple LED illumination
Optical Resolution (dpi): 600dpi.
Resolutions for SCAN mode: 200/400/600dpi
Resolutions for COPY mode (scan/print): 300/300, 300/600, 600/600dpi
Paper path: Face up, rear exit. Forward document transport only; 3 Document return guides included for L36
Scan width: 36″/914.4mm
Min scan width: 6″/152.4mm
Document width: 38″/965.2mm
Max scan length: 109″/2768mm
Weight of scanner: 6.88kg (15.1lbs) without Doc return guide
Dimensions width: 1238mm
Weight of scanner: 6.88kg (15.1lbs) without Doc return guide, 7.37kg (16.2lbs) with.
Dimensions W x D x L: With Doc Return Guide – Paper Tray flat: 1238 x 193 x 131; Without Doc Return Guide – Paper Tray flat: 1238 x 253 x 131
Max & Min Document thickness: Designed to scan Canon iPF printer CAD paper; Min = 0.07mm;Max = 0.5mm
Scan accuracy: 0.2% +/-1 pixel
-
Canon OCE Colorado 1640
Specifications in detail
Printing
Printing method
Canon UVgel piezoelectric inkjet
Printing modes
159 m2/hr – Max speed
114 m2/hr – High speed
57 m2/hr – Production
40 m2/hr – High quality
20 m2/hr – Specialty
20 m2/hr – BacklitsPrint Resolution
up to 1800 dpi
Ink types
Canon UVgel 355 ink
Ink Colour
CMYK
Ink packaging
2 x 1 litre ink bottle
Ink reservoir can accommodate up to 2,5 ltr per ink colour
Refill while printingPrintheads
Canon UVgel 415 Printhead
High frequency drop-on-demand piezoelectric printhead (2/color)
Océ PAINT (Piezo Acoustic Integrated Nozzle Technology) constantly monitors and compensates for nozzle failures that can occur during printingAutomatic Maintenance
Eliminate daily manual maintenance tasks to save operator time
Curing
UV LED
Media
Roll width
Up to 1625 mm
Print margin
5,3 mm*
Roll weight
Up to 50 kg
Roll diameter
Up to 220mm
Media thickness
Up to 0,8mm
Number of input rolls
2 (automatic roll-feeding and -switching depending on media used)
Media take-up system
Wound-in or out, loosely or tightly **
UVgel technology
Instant pinning and dot gain control
Low temperature curing – suitable for thin and heat-sensitive media
Outstanding scratch resistance
Easy lamination, smooth ink film
High precision colour-matching and consistency
Odourless and instant dry printoutEnvironmental and Safe Use Certifications
Indoor AgBB (general)
GREENGUARD GOLD (wall paper general)
EN15102 (decorative wall coverings)Interface
Ethernet (100/1000 Mbit/s)
Dimensions
Printer W x D x H
3022 x 1093 x 1310 mm
Weight
Printer
740 kg
Working Environment
Operation printer
18 – 30°C (recommended 20 – 27°C)
20-80% RH (no condensation) (recommended 30-60%)Power
Consumption
Up to 4 kW printing
Source
2 inputs, each 200-240V +/- 10%, 50/60 Hz, 16/6 A.
Regulatory Certifications
Declaration of Conformity
Printer is declared under Radio Equipment Directive (RED)-2014/53/EU
Radio
Compliant with EN62479, EN301 489-1, EN301 489-3, EN300-330
FCC Part 15 and RSS-210 certified (module)Safety
IEC/EN/UL/CSA 62368-1 compliant Applicable marks: CE, TÜV-GS, C-UL-US, RCM
EMC
Emission: Class A compliant according CISPR 32, FCC part 15 and ICES-003
Immunity: CISPR 24 compliant
Applicable marks: CE, FCC, IC, VCCI, RCM, CETECOMEnvironmental
WEEE, RoHS directive 2011/65 EU, REACH, CE
Software
Supported RIPs
ONYX® Graphics, Caldera
-
-
-
Digital All in One Album Machine
Easy and simple operation, the finished albums are uniform, solid glued and last long.
The cover making machine apply the adsorption system fixing the paper so as to position precisely
Easy corner cutting machine, precise cutting
Creasing blade can press out exquisite lines without fracture
Precious pressing marks and not to hurt the photos
-
-
DT 4 Semi Auto Album Machine
Finest Quality: Our DT4 Album Machine is one of the finest quality album machines which is known for its quality and durability world wide
Faster and Efficient: DT4 album machine is one of the most fastest and energy efficient album making machines available in the market
Easy Operation: The machine is equipped with manual user control panel for easy operation
Full Control: Resources of the machine such as air -pressure, temperature etc can be fully controlled with the help of manual controls
-
Epson Surelab D800
- Printing Method: Epson Micro Piezo drop-on-demand inkjet technology; High-performance print head technology designed for robust printing environments; Variable Sized Droplet Technology
- Printing Resolution: 720x720dpi on Luster Paper and Glossy Paper; 720x360dpi on Luster Paper and Glossy Paper; 1440x720dpi on Matte Paper, Luster Paper and Glossy Paper
- Print lengths: 50-1000mm
- Roll media widths: 89mm, 102mm, 127mm, 152mm, 203mm and 210mm
- Production speed: 360 pph (15x10cm)
- Minimum Droplet Size: 2.5 Pl, With Variable-Sized Droplet Technology
- Print Speed – High Speed: 430 – 15 x 10 cm (6 x 4 “) prints/h
- Standard: 360 – 15 x 10 cm (6 x 4 “) prints/h
- High Quality: 180 – 15 x 10 cm (6 x 4 “) prints/h
- Single Print using Quick Print Mode: 17 sec – 15 x 10 cm (6 x 4 “) prints/h
- Ink Technology: Ultra chrome® D6r-S
- Ink Set: 6 colors
- Cartridge Size: 200 ml
- Supported Media: Glossy, Luster, Matte
- Media Handling: Roll Paper
- No. Of Roll holders: 1 pcs
- Rear Roll specs: Max. Roll Length 66 m, Core Diameter 76 mm ± 2 mm ( 3 inch ), External Diameter 170 mm, Weight < 4 kg
- Supported Media Width: 102mm (4-inch), 127mm (5-inch), 152mm (6-inch), 203mm (8-inch), 210mm (A4), 89mm (3.5-inch)
- Print Size: 8.9 cm x 5 cm to 21 cm x 100 cm, 3.5 inches x 2 inches to 8.25 inches x 39 inches
- Max. Print width: 210 mm
- Print Margins: Border defined by application, Borderless
- Auto Cutter: Yes
-
Epson SureLab D700
- Printing Method: Epson Micro Piezo drop-on-demand inkjet technology, High-performance print head technology designed for robust printing environments, Variable Sized Droplet Technology
Printing Resolution: 720x720dpi on Lustre Paper, 720x720dpi on Glossy Paper, 720x360dpi on Luster Paper, 720x360dpi on Glossy Paper, 1440x720dpi on Matte Paper, 1440x720dpi on Luster Paper, 1440x720dpi on Glossy Paper
Minimum Droplet Size: 2.5 pl, With Variable-Sized Droplet Technology
Max. Print speed: 360 – 4×6″ (10x15cm) Prints/h, 8 – 4×6″ Secs per print
Ink Technology: Ultrachrome® D6-S
Ink Set: 6 colours
Available Colours: Black, Cyan, Light Cyan, Light Magenta, Magenta, Yellow
Cartridge Size: 200 ml
Supported Media: Glossy, Lustre, Matte
Media Handling: Roll Paper
No. Of Roll holders: 1 pcs
Rear Roll specs: Max. Roll Length 66 m, Core Diameter 76 mm ± 2 mm ( 3 inch ), External Diameter 170 mm, Weight < 4 kg
Supported Media Width: 102mm (4-inch), 127mm (5-inch), 152mm (6-inch), 203mm (8-inch), 210mm (A4)
Print Size: 10.2 cm x 8.9 cm to 21 cm x 100 cm, 4 inches x 3.5 inches to 8.25 inches x 39 inches
Max. Print width: 210 mm
Print Margins: Border defined by application, Borderless
Auto Cutter: Yes
Other Hardware: Control LED for roll paper and ink
Available Software: Printer Driver (standard bundling), Order Controller (optional)
Compatible Operating Systems: Mac OS 10.5+, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition
Interfaces: USB 2.0 Type A
Product dimensions: 460 x 430 x 354 mm (Width x Depth x Height)
Product weight: 23 kg without media and ink
- Printing Method: Epson Micro Piezo drop-on-demand inkjet technology, High-performance print head technology designed for robust printing environments, Variable Sized Droplet Technology
-
Epson FastFoto FF-680W Wireless Photo & Document Scanner
World’s Fastest Personal Photo Scanner
Scan thousands of photos as fast as 1 photo per second at 300 dpiPreserve Your Priceless Photos
Safe Touch Technology for worry-free scanning up to 8.5″ wide, plus postcards, Polaroid photos and panoramasSecond-Generation Epson FastFoto Software
Scan, Restore, Organize and Share precious memories; offers intelligent file organization toolsFlexible Scanning
Offers modes for easy sharing (300 dpi), archiving (600 dpi TIFF) and enlarging (1200 dpi); handles multiple sizes in one batchEasy to Connect
Includes both USB and wireless connectivity for flexible placementPerfect Picture Imaging System
Bring new life to old photos with auto enhancement, color restoration, red-eye reduction, de-skew, crop, rotate -
-
Epson Stylus PRO 4900
- Printing Technology:
Advanced MicroPiezo TFP print head with ink repelling coating technology
10-channel, drop-on-demand, ink jet print head
11-cartrides configured as: O, G, C, LC, VM, VLM, Y, LK, LLK, PK or MK
Auto Head Alignment and Cleaning technology
Minimum Ink Droplet Size:
Smallest droplet size 3.5 picoliters
Variable Droplet Technology can produce up to three different droplet sizes per print line
Maximum Print Resolution:
2880 x 1440 dpi; 1440 x 1440 dpi; 1440 x 720 dpi;720 x 720 dpi; 720 x 360 dpi; Draft 360 dpi
720 x 720 dpi; 720 x 360 dpi; Draft 360 dpi
Maximum Printable Area:
Single roll up to 17″ width
Print Speed:
8″ x 10″ prints from 0:59 sec to 2:26; Normal is 1:28
11″x 14″ prints from 1:42 to 4:04; Normal is 2:31
16″x 20″ prints from 2:46 to 6:48; Normal is 4:11
Nozzle Configuration:
Color and Monochrome 360 nozzles x10
Replacement Ink:
Photo Black T653100
Cyan T653200
Light Black T653700
Vivid Light Magenta T653600
Light Cyan T653500
Orange T653A00
Light Light Black T653900
Green T653B00
Fade Resistance / Print Longevity:
Color: Up to 200 years1
Black-and-White: Up to 400 years1
Operating Systems:
Mac: Leopard 10.5, or higher (16-bit)
Windows: XP, Vista, and Windows 7 (32 & 64-bit)
Sound Level:
45 dB (A)
Dimensions:
34″(W) x 16″(H) x 30″(D)
Weight:
115 lb
- Printing Technology:
-
Epson Stylus PRO 9900
- Colours: Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta, Orange, Green
Minimum Droplet Size: 3.5 pl
Nozzle Configuration: 360 Nozzles Black, 360 Nozzles per Color
Printing Resolution: 2,880 x 1,440 DPI
Paper Formats: A0, A1, A2, A3+, A3, A4, B1, B2, B3, B4, 17 ” (43.2 cm), 24 ” (61.0 cm), 44 ” (111.8 cm), User defined, B0
Print Margins Sheet Media: Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness: 0.08 mm – 1.5 mm
Duplex: No
Energy Use: 80 Watt, 16 Watt (economy), 1 Watt (standby)
Product dimensions: 1,864 x 667 x 1,218 mm (Width x Depth x Height)
Product weight: 116 kg
Noise Level: Operation: 50 dB (A)
Interfaces: Wired Network, USB 1.1 Type B, USB 2.0 Type B
Media Handling: Fine Art Paper Path, Roll Paper, Thick Media Support
- Colours: Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta, Orange, Green
-
Epson SureColor P10000
Print:
Printing Technology:
Advanced PrecisionCore MicroTFP Print Head
10-channel, piezo inkjet print head
Minimum Ink Droplet Size:
Enhanced Variable Droplet Technology as small as 3.5 picoliters
Maximum Print Resolution:
2400 x 1200 dpi; 1200 x 1200 dpi; 1200 x 600 dpi; 600 x 600 dpi; 600 x 300 dpi
Print Speed:
16″ x 20″ prints from 1:47 to 3:17 Production is 2:09
20″ x 30″ prints from 2:55 to 5:33 Production is 3:40
40″ x 60″ prints from 8:33 to 16:30 Production is 10:52
Nozzle Configuration:Color and Monochrome; 800 nozzles x 10 channelsInk:
Ink Type:
Epson UltraChrome PRO pigment inks
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.
Ink Palette:C, LC, VM, VLM, Y, LGY, GY, DGY, PK, MK
Ink Configuration:10-ink, 9-color
Replacement Ink:- Photo Black T800100
- Cyan T800200
- Vivid Magenta T800300
- Yellow T800400
- Light Cyan T800500
- Vivid Light Magenta T800600
- Dark Gray T800700
- Matte Black T800800
- Gray T800900
- Light Gray T800000
Fade Resistance / Print Longevity:UltraChrome HDX, our next-generation pigment ink technology, is independently rated by Wilhelm Research for up to 200 years for color prints and up to 400 years for black-and-white prints
Ink Supply System:
Ink Supply Fill Volume:
Initial cartridge fill volume: 110 ml x 10 total colors (used for initial fill at setup)
Cartridge fill volume: 700 ml each x 10 colors total
Ink Shelf Life:
2 years from printed production date or 6 months after open -
Epson SureColor P20000
Print:
Printing Technology:
Advanced PrecisionCore MicroTFP Print Head
10-channel, piezo inkjet print head
Minimum Ink Droplet Size:
Enhanced Variable Droplet Technology as small as 3.5 picoliters
Maximum Print Resolution:
2400 x 1200 dpi; 1200 x 1200 dpi; 1200 x 600 dpi; 600 x 600 dpi; 600 x 300 dpi
Print Speed:
16″ x 20″ prints from 1:47 to 3:17 Production is 2:09
20″ x 30″ prints from 2:55 to 5:33 Production is 3:40
40″ x 60″ prints from 8:33 to 16:30 Production is 10:52
Nozzle Configuration:Color and Monochrome; 800 nozzles x 10 channelsInk:
Ink Type:
Epson UltraChrome PRO pigment inks
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.
Ink Palette:C, LC, VM, VLM, Y, LGY, GY, DGY, PK, MK
Ink Configuration:10-ink, 9-color
Replacement Ink:- Photo Black T800100
- Cyan T800200
- Vivid Magenta T800300
- Yellow T800400
- Light Cyan T800500
- Vivid Light Magenta T800600
- Dark Gray T800700
- Matte Black T800800
- Gray T800900
- Light Gray T800000
Fade Resistance / Print Longevity:
UltraChrome HDX, our next-generation pigment ink technology, is independently rated by Wilhelm Research for up to 200 years for color prints and up to 400 years for black-and-white prints
Ink Supply System:
Ink Supply Fill Volume:
Initial cartridge fill volume: 110 ml x 10 total colors (used for initial fill at setup)
Cartridge fill volume: 700 ml each x 10 colors total
Ink Shelf Life:
2 years from printed production date or 6 months after open -
Epson SureColor P5000
- Refined printer design — improved dust and static control for reduced printhead nozzle maintenance
- Improved Black density — higher-density Black pigments for a wider contrast ratio and enhanced clarity for both color and black-and-white prints
- Exceptional print permanence — offers next-generation pigment ink technology for up to twice the overall print permanence than our previous generation of ink
- Remarkable detail — Epson PrecisionCore TFP printhead delivers high print speeds with 360 nozzles per color channel, with variable-size ink droplets as small as 3.5 picoliters
- Versatile, productive media handling — automatically switch between the high-capacity front paper cassette and the roll media feeder
- Standard Edition — 10-color UltraChrome HDX Ink set features Orange and Green and three-level Black inks supporting advanced black-and-white photographic printing
- Commercial Edition — includes an all-new Violet ink (in place of Light Light Black) to deliver an industry-best 99 percent PANTONE® PLUS FORMULA GUIDE solid-coated color matching, ideal for commercial and flexographic proofing applications.
- Designer Edition — offers all the features of the Standard Edition, plus it includes EFI® Fiery® eXpress for Epson, an industry‑leading software RIP with true Adobe® PostScript® 3™ for accurate CMYK and spot color printing
- Epson Precision Dot screening algorithm — ensures incredibly accurate control of the sizing and mixing of ink droplets for beautiful prints
- Easy to use — 2.7″ LCD panel allows for easy setup, control and maintenance of the printer
- Epson Print Layout — simplified workflow and easy color control. Find this download on the Support tab.
- Optional On-Board Spectrophotometer – Epson SpectroProofer UVS developed jointly with X-Rite automates color profile creation, printer linearization, and proof verification.
-
Epson SureColor SC P6000 STD
- Colours: Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta
Ink tank capacity: 700 ml
Minimum Droplet Size: 3.5 pl, With Variable-Sized Droplet Technology
Nozzle Configuration: 360 Nozzles Black, 360 Nozzles per Color
Printing Resolution: 2,880 x 1,440 DPI
Paper Formats: A1, A2, A3+, A3, A4, 17 ” (43.2 cm), 24 ” (61.0 cm), User defined, B2, B3, B4
Print Margins Sheet Media: Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness: 0.08 mm – 1.5 mm
Duplex: No
Borderless printing on: 254 mm, 300 mm, 329 mm, 406 mm, 432 mm, 515 mm, 594 mm, 610 mm
Media Handling: Fine Art Paper Path, Roll Paper, Thick Media Support
LCD screen type: Colour, Diagonal: 6.8 cm
- Colours: Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta
-
Epson SureColor SC P7000 STD
Colours: Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Orange, Green
Ink tank capacity: 700 ml
Minimum Droplet Size: 3.5 pl
Nozzle Configuration: 360 Nozzles Black, 360 Nozzles per Color
Printing Resolution: 2,880 x 1,440 DPI
Paper Formats: A1, A2, A3+, A3, A4, B2, B3, B4, 17 ” (43.2 cm), 24 ” (61.0 cm), User defined
Print Margins Sheet Media: Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness: 0.08 mm – 1.5 mm
Duplex: No
Borderless printing on: 254 mm, 300 mm, 329 mm, 406 mm, 432 mm, 515 mm, 594 mm, 610 mm
Energy Use: 65 Watt, 19 Watt (economy), 2 Watt (standby), 0.5 Watt (Power off)
Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 1,356 x 667 x 1,218 mm (Width x Depth x Height)
Product weight: 144 kg
Sound Power: Operation: 6.5 B (A)
Noise Level: Operation: 47 dB (A)
Media Handling: Fine Art Paper Path, Roll Paper, Thick Media Support
Memory (Printer): 1 GB
Emulations: ESC/P-R
-
Epson SureColor SC P7000 V
- Colours: Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta, Violet, Orange, Green
Ink tank capacity: 700 ml
Minimum Droplet Size: 3.5 pl
Nozzle Configuration: 360 Nozzles Black, 360 Nozzles per Color
Printing Resolution: 2,880 x 1,440 DPI
Paper Formats: A1, A2, A3+, A3, A4, B2, B3, B4, 17 ” (43.2 cm), 24 ” (61.0 cm), User defined
Print Margins Sheet Media: Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness: 0.08 mm – 1.5 mm
Duplex: No
Borderless printing on: 254 mm, 300 mm, 329 mm, 406 mm, 432 mm, 515 mm, 594 mm, 610 mm
Energy Use: 65 Watt, 19 Watt (economy), 2 Watt (standby), 0.5 Watt (Power off)
Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 1,356 x 667 x 1,218 mm (Width x Depth x Height)
Product weight: 144 kg
Sound Power Operation: 6.5 B (A)
Noise Level Operation: 47 dB (A)
- Colours: Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta, Violet, Orange, Green
-
Epson SureColor SC P8000 STD
- Colours: Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta
Ink tank capacity: 700 ml
Minimum Droplet Size: 3.5 pl
Nozzle Configuration: 360 Nozzles Black, 360 Nozzles per Color
Printing Resolution: 2,880 x 1,440 DPI
Paper Formats: A0, A1, A2, A3+, A3, A4, User defined, 17 ” (43.2 cm), 24 ” (61.0 cm), 44 ” (111.8 cm), B1, B2, B3, B4, B0
Print Margins Sheet Media: Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness: 0.08 mm – 1.5 mm
Duplex: No
Borderless printing on: 254 mm, 300 mm, 329 mm, 406 mm, 432 mm, 515 mm, 594 mm, 610 mm, 728 mm, 914 mm, 1118 mm
Energy Use: 75 Watt, 19 Watt (economy), 2 Watt (standby), 0.5 Watt (Power off)
Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 1,864 x 667 x 1,218 mm (Width x Depth x Height)
Product weight: 135 kg
Sound Power Operation: 6.2 B (A)
Noise Level Operation: 47 dB (A)
Media Handling: Fine Art Paper Path, Roll Paper, Thick Media Support
- Colours: Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta
-
Epson SureColor SC P9000 STD
- Colours: Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta, Orange, Green
Ink tank capacity: 700 ml
Minimum Droplet Size: 3.5 pl
Nozzle Configuration: 360 Nozzles Black, 360 Nozzles per Color
Printing Resolution: 2,880 x 1,440 DPI
Paper Formats: A0, A1, A2, A3+, A3, A4, B1, B2, B3, B4, 17 ” (43.2 cm), 24 ” (61.0 cm), 44 ” (111.8 cm), User defined, B0
Print Margins Sheet Media Mode: 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness: 0.08 mm – 1.5 mm
Duplex: No
Borderless printing on: 254 mm, 300 mm, 329 mm, 406 mm, 432 mm, 515 mm, 594 mm, 610 mm, 914 mm, 1118 mm
Energy Use: 75 Watt, 19 Watt (economy), 2 Watt (standby), 0.5 Watt (Power off)
Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 1,864 x 667 x 1,218 mm (Width x Depth x Height)
Product weight: 195 kg
Sound Power Operation: 6.5 B (A)
Noise Level Operation: 47 dB (A)
- Colours: Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta, Orange, Green
-
Epson SureColor SC P9000 V
- Colours: Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Vivid Magenta, Vivid Light Magenta, Violet, Orange, Green
Ink tank capacity: 700 ml
Minimum Droplet Size: 3.5 pl
Nozzle Configuration: 360 Nozzles Black, 360 Nozzles per Color
Printing Resolution: 2,880 x 1,440 DPI - Paper Formats: A0, A1, A2, A3+, A3, A4, B1, B2, B3, B4, 17 ” (43.2 cm), 24 ” (61.0 cm), 44 ” (111.8 cm), User defined, B0
Print Margins Sheet Media: Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness: 0.08 mm – 1.5 mm
Duplex: No
Borderless printing on: 254 mm, 300 mm, 329 mm, 406 mm, 432 mm, 515 mm, 594 mm, 610 mm, 914 mm, 1118 mm - Energy Use: 75 Watt, 19 Watt (economy), 2 Watt (standby), 0.5 Watt (Power off)
Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 1,864 x 667 x 1,218 mm (Width x Depth x Height)
Product weight: 195 kg
Sound Power: Operation: 6.2 B (A)
Noise Level: Operation: 47 dB (A) - Memory (Printer): 1 GB
Emulations: ESC/P-R - Media Handling: Fine Art Paper Path, Roll Paper, Thick Media Support
- Colours: Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Vivid Magenta, Vivid Light Magenta, Violet, Orange, Green
-
Epson SureColor SC-F2000
Reliability
Unlike some other manufacturers, we design and build every component, to ensure the technology works cohesively to produce exceptional prints time and time again. Epson’s PrecisionCore TFP printhead delivers high throughput and crisp, sharp colour, complemented perfectly by Epson UltraChrome DG inks. We put everything we know into the SC-F2000 so your business can get the most out of it.
Cost-effectiveness
Reduce your operational costs and meet demand with manual or automatic maintenance. If you’re serious about quality results each and every time, there’s a solution for you.
Quality
The SC-F2000 allows you to print directly onto cotton or cotton mix with complete ease, producing bold and colourful prints with unparalleled quality and efficiency. Get a competitive edge in the DTG market with a printer that has reliability built in.
Flexibility
The SC-F2000 offers everything you need to start printing on all kinds of garments, from t-shirts and scarves to aprons and tote bags, with platens to suit different sizes. The height adjustable platen is designed for easy garment loading. Garment Creator software enables you to queue jobs and edit designs. You can even check cost estimates for jobs before you start printing, helping you to plan, budget and profit.
ECO PASSPORT by OEKO-TEX®
is a system by which textile chemical suppliers demonstrate that their product can be used in a sustainable textile production. Epson UltraChrome DG ink and pre-treatment are certified by the Eco Passport. This is an international safety standard in the textile industry. It is certified to be safe for adults and children, including babies.
-
Epson SureColor SC-F6200
- Colours: Black, Cyan, Yellow, Magenta
Ink tank capacity: 1,500 ml
Minimum Droplet Size: 5.3 pl, With Variable-Sized Droplet Technology
Printing Resolution: 720 x 1,440 DPI - Paper Formats: 44 ” (111.8 cm)
Print Margins Roll Media: Mode 1: 3 mm (top), 3 mm (right), 3 mm (bottom), 3 mm (left)
Compatible Paper Thickness: 0.08 mm – 0.5 mm
Compatible Paper Weight: 75g/m² or heavier
Duplex: No - Energy Use: 65 Watt, 20 Watt (economy), 3 Watt (standby), 0.4 Watt (Power off)
Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 1,608 x 1,128 x 917 mm (Width x Depth x Height)
Product weight: 85 kg
Noise Level: 55.1 dB (A) - Memory (Printer): 512 MB, Network: 128 MB
Emulations: ESC/P, ESC/P2
- Colours: Black, Cyan, Yellow, Magenta
