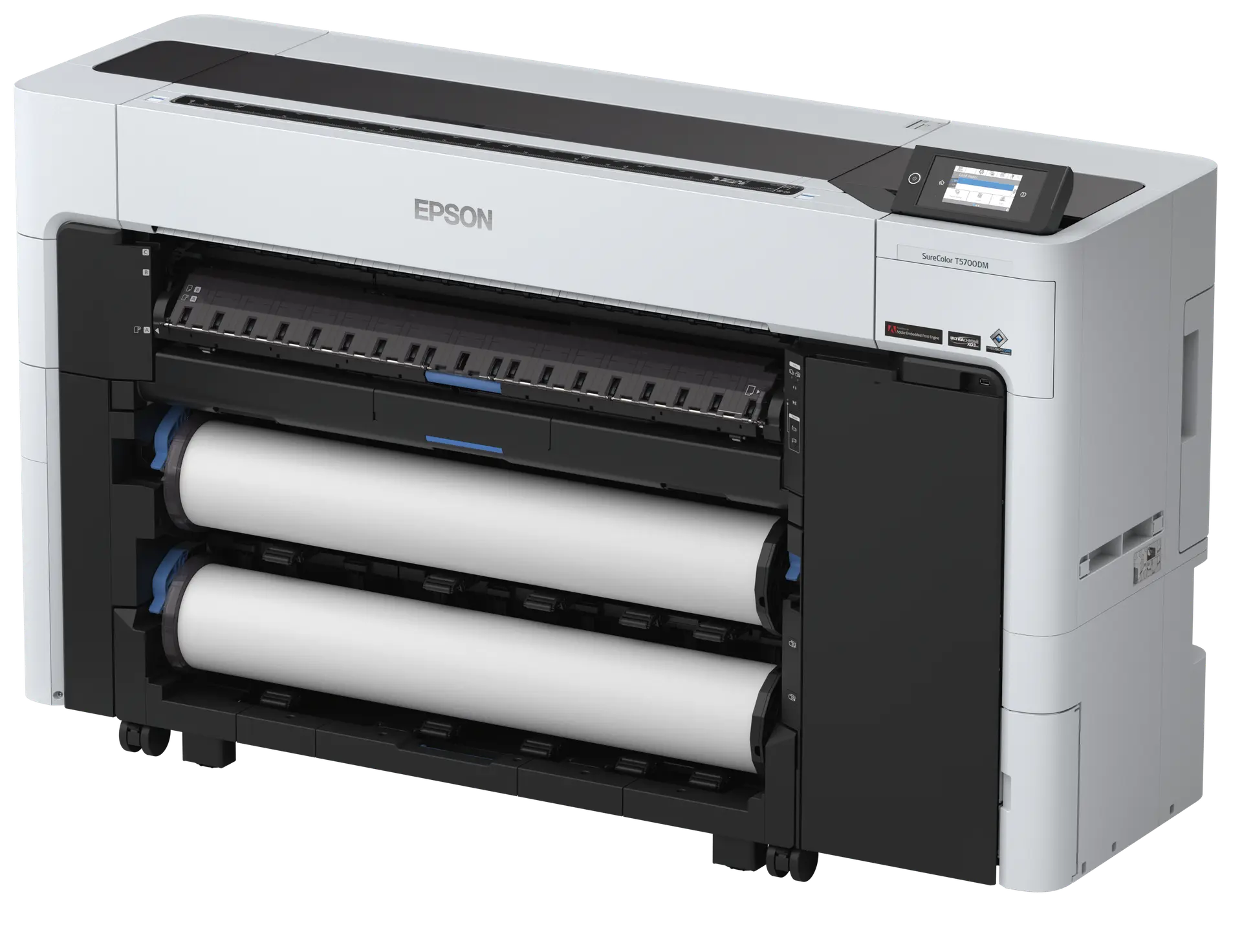

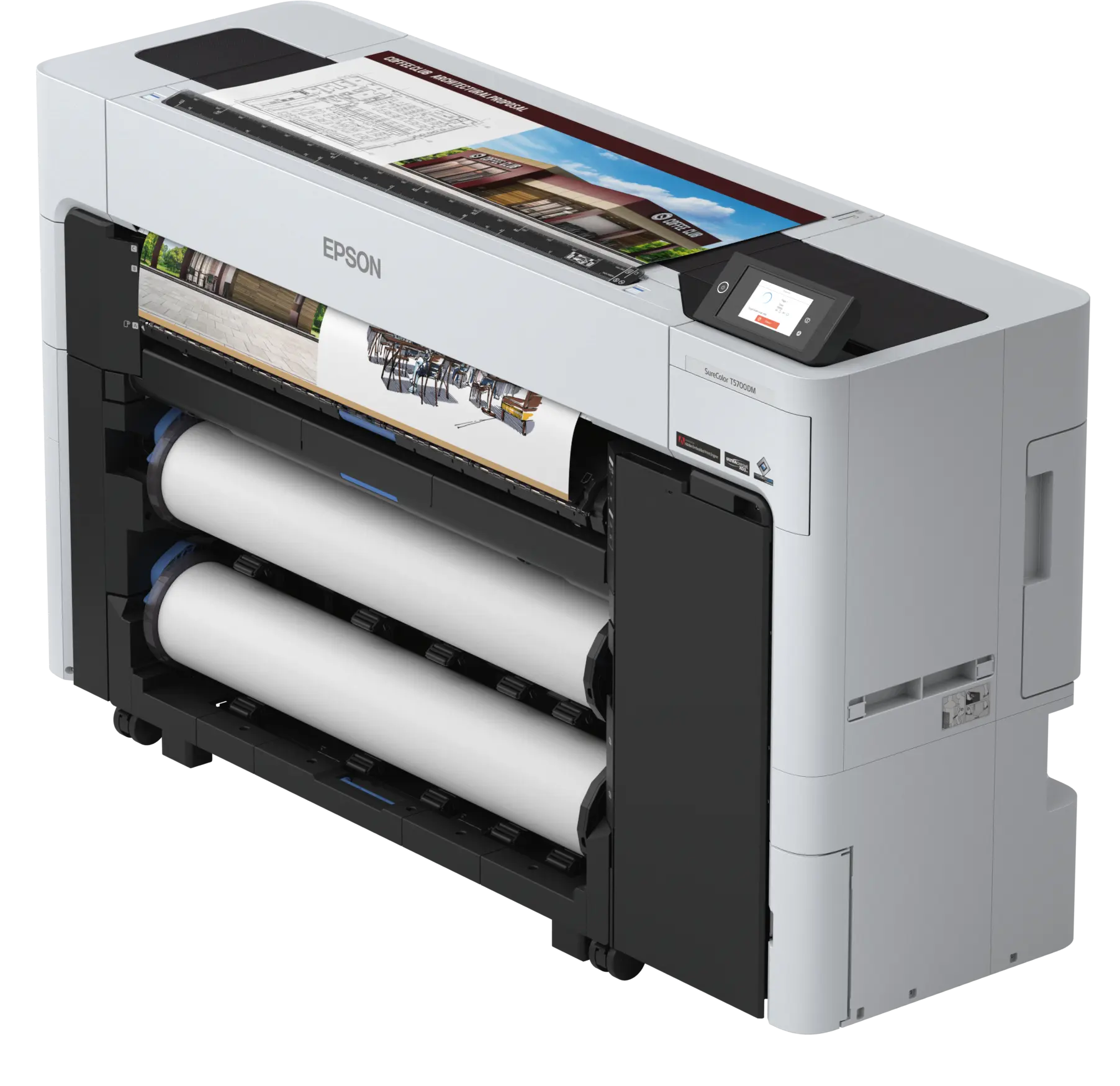

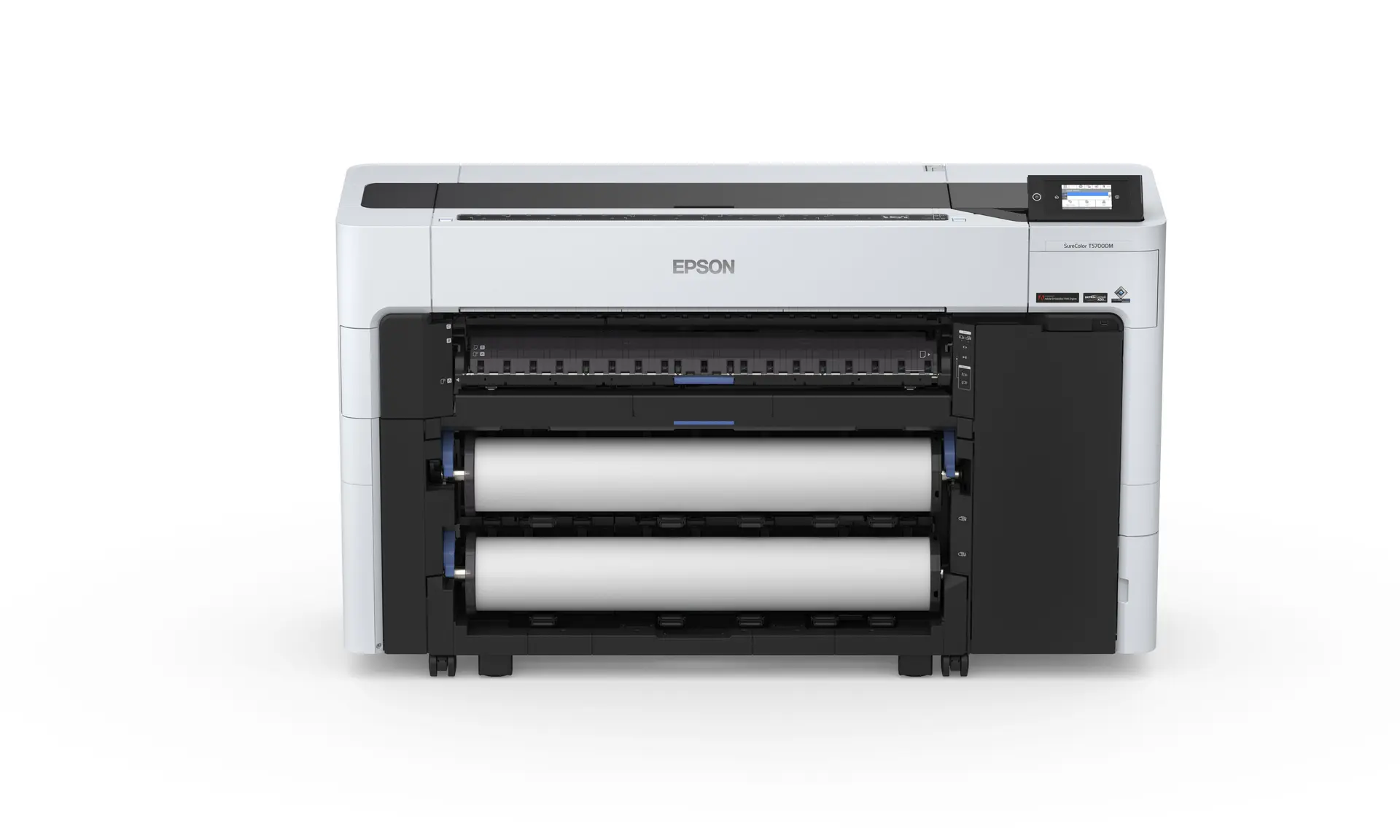

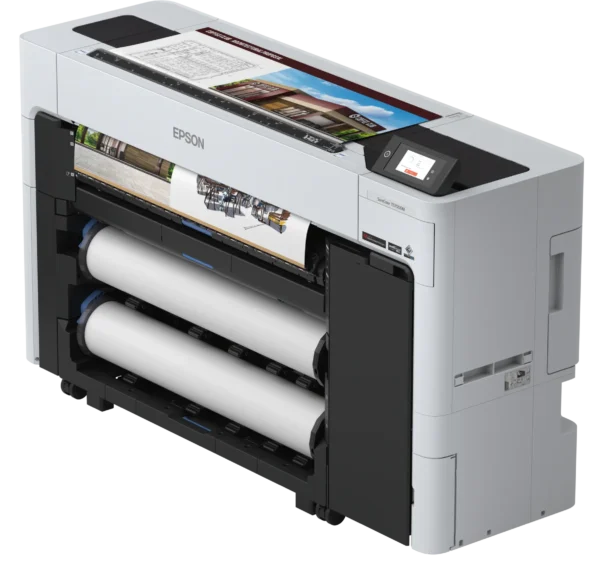

Epson SureColor SC T5700DM Technical Plotter Printer
• High productivity
36-inch dual light CIS scanner with RGB filters
• Secure scanning destinations
Scan to secure sites, Mail, encrypted SSD and FTP servers
• Enhanced image quality
Dual light scanner detects and adjusts to reduce wrinkles and creases
• Extensive processing and storage
Adobe PS 64GB, 4GB Printer memory, 8GB scan mem included in 960GB SSD
Product Description
| Technology | |
|---|---|
| Printing Method | PrecisionCore™ TFP print head |
| All-in-One Functions | Print, Scan, Copy |
| Ink Technology | Ultrachrome® XD3 |
| Colours Capacity | Photo Black [350ml, 700ml], Matte Black [350ml, 700ml], Cyan [350ml, 700ml], Yellow [350ml, 700ml], Magenta [350ml, 700ml], Red [350ml, 700ml] |
| Minimum Droplet Size (colour) | (CMY)3.5 pl, (mk)3.5 pl, (pk)3.5 pl |
| Minimum line width | 0.02 mm |
| Line accuracy | +/-0.26 |
| Print from | PC, MAC, Network, Mobile Device, USB, Cloud, Direct from Device |
| Printing Resolution | 1,200 x 2,400 DPI |
| Printing Resolution – Speed | 300 x 600 DPI |
| Paper / Media Handling | |
| Paper Formats | A0, A1, A2 (42.0×59.4cm), A3 (29.7×42.0 cm), A4 (21.0×29.7 cm), 17″ (43.2 cm) Roll, 24″ (61.0 cm) Roll, 36″ (91.4 cm) Roll |
| Thickness | Single Sheet0.1 mm, Roll0.3 mm, Rigid board suppported |
| Compatible Paper Thickness | 1.5 mm |
| Auto Take Up Reel | Yes |
| Roll Capacity – Diameter | Roll 1:170 mm, Roll 2:170 mm |
| Roll Capacity – Weight | Roll 1:10,200 g, Roll 2:10,200 g |
| Borderless printing on | 20 inches, 10″ (25.4cm) Roll, 17″ (43.1cm) Roll, 24″ (60.9cm) Roll |
| General | |
| Power consumption | 90 Watt, 44 Watt (economy), 2 Watt (standby), 1.3 Watt (Power off) |
| Supply Voltage | AC 100 V – 240 V, 50 Hz – 60 Hz |
| Product dimensions | 1,645 x 499 x 975 mm (Width x Depth x Height) |
| Product weight | 147 kg |
| What’s in the box | AC adapter, Adobe PostScript 3, Ink set, Installation/safety manual, Maintenance boxes, Roll Feed Spindle 36″, Setup guide, SureColor T-Series Printer/Scanner, Warranty Documents |
| Optional extras | Cover Plus warranty extensions, NFC Card Reader (Server), NFC Card Reader (Serverless), Roll Feed Spindle 36″ |
| Other Features | |
| Emulations | ESC/P-R, PostScript 3, Adobe® Postscript 3®, PDF 1.7, HP-GL2, RTL |
| Features | Touchscreen, Bluetooth, Direct print from USB, Driver Preview, Scan Preview, Auto Take up Reel, Nozzle Verification Technology |
| Interfaces | Hi-Speed USB – compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac |
| Optional Software & Solutions | Epson Print Automate, Dinax Mirage, Epson Edge, Epson Cloud Solution PORT, Epson Print Layout, Epson LFP Accounting Tool, Epson Device Admin, Epson Edge Dashboard, Epson Print Admin, Epson Print Admin Serverless |
| Security | SNMP V3, IPSec, AES-256, Data storage Encryption, Data Encryption, WPA3, NFC – Card Authentication Reader, TMP (Trusted Platform Module), PIN code Release, Image Overwrite, User Authorisation, LDAP, IEEE802, SSL/TLS, Panel Admin Mode |
| Other | |
| Warranty | 24 months On-site service |
| LCD and Memory Cards | |
| Panel | Type: Color, Touchscreen |
| Scan | |
| Scanner | Standard |
| Maximum Precision | OR +/-0.1 % of vector length (whichever is greater) |
| Output formats | JPEG, TIFF, multi-TIFF, PDF, PDF/A, PDF multi, Secured PDF |
| Scanner type | Contact image sensor (CIS) |
| Light Source | Dual LED (RGB) |
| Scan width | 36″ (153mm to 914.4mm) |
| Scanning Speed | 10 inch/sec ( Monochrome, 200 dpi; 4.5 inch/sec ( Colour, 200 dpi; |
