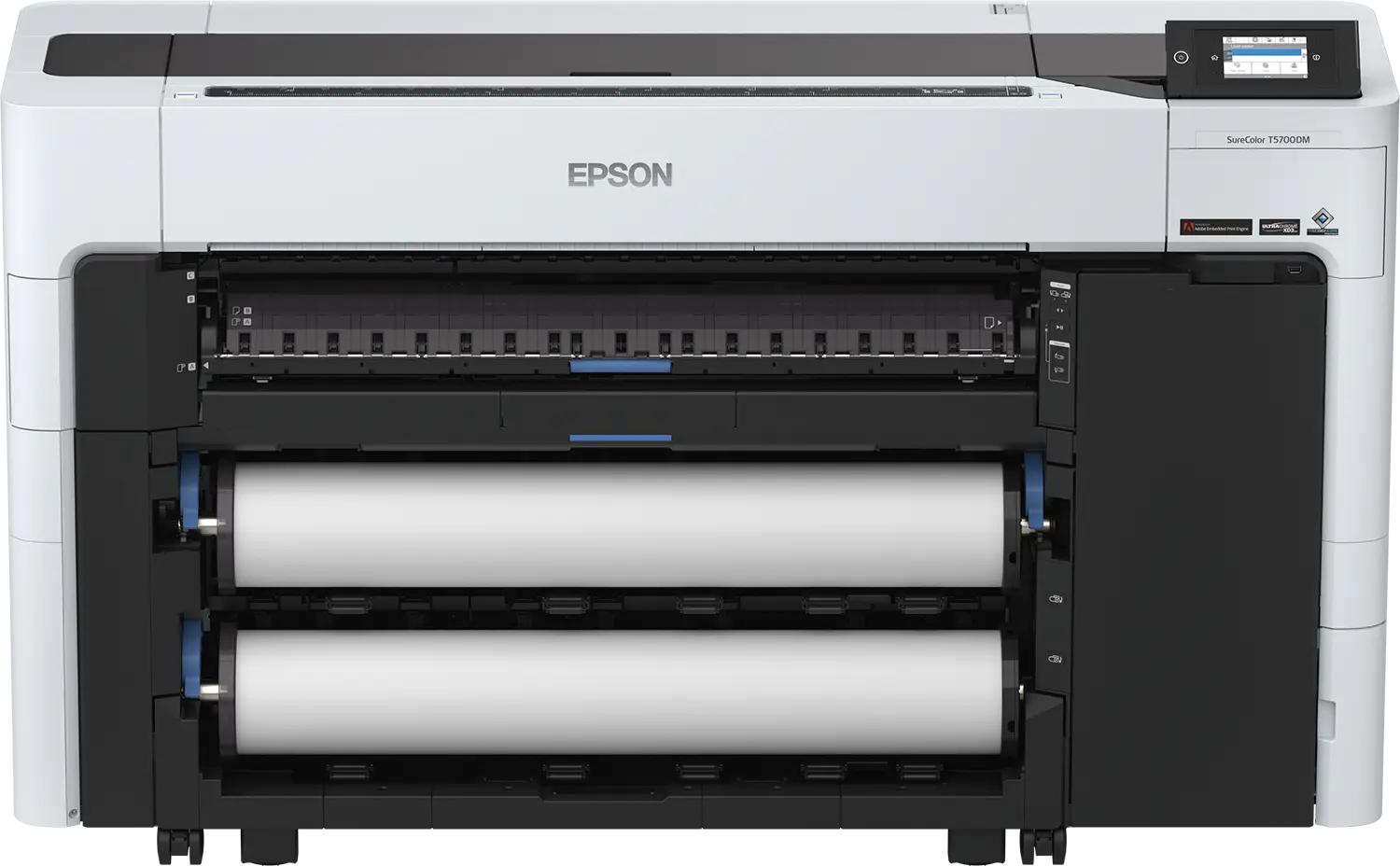

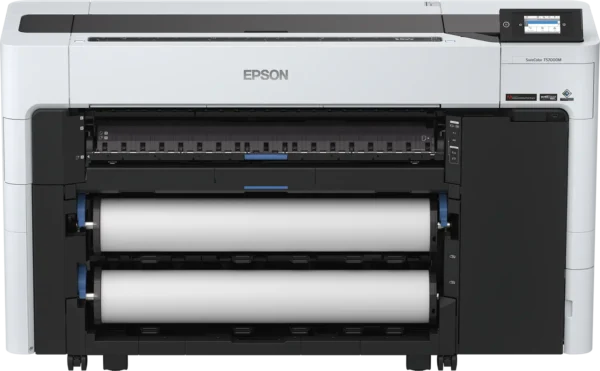

Epson SureColor SC T5700D Technical Plotter Printer
• High productivity
Fast, versatile and secure printing from PC, mobile and USB
• Enhanced security features
Protect highly confidential documents with ease
• Versatility
Automatic media loading and Save to functionality
• High image quality
Sharp detailed prints thanks to Adobe PostScript 3 as standard
• Valuable options
Self encrypting 960GB SSD
Product Description
| Technology | |
|---|---|
| Printing Method | PrecisionCore™ TFP print head |
| Ink Technology | Ultrachrome® XD3 |
| Number of colours | 6 colour |
| Colours Capacity | Photo Black [350ml, 700ml], Matte Black [350ml, 700ml], Cyan [350ml, 700ml], Yellow [350ml, 700ml], Magenta [350ml, 700ml], Red [350ml, 700ml] |
| Minimum Droplet Size | 3.5 pl, With Variable-Sized Droplet Technology |
| Minimum line width | 0.02 mm |
| Line accuracy | +/-0.26 |
| Print from | PC, MAC, Network, Mobile Device, Cloud, Direct USB |
| Printing Resolution – Draft | 300 x 600 DPI |
| Printing Resolution – Maximum Quality | 2,400 x 1,200 DPI |
| Printing Resolution – Speed | 300 x 600 DPI |
| Paper / Media Handling | |
| Paper Formats | 17″ (43.2 cm) Roll, 24″ (61.0 cm) Roll, 36″ (91.4 cm) Roll, Custom width and length, A0, A1, A2+, A3+, A4 (21.0×29.7 cm) |
| Auto Take Up Reel | Yes |
| Printable Length | Roll91 |
| Roll Capacity – Diameter | Roll 1:170 mm, Roll 2:170 mm |
| Roll Capacity – Weight | Roll 1:10,200 g, Roll 2:10,200 g |
| Borderless printing on | 10″ (25.4cm) Roll, 17″ (43.1cm) Roll, 24″ (60.9cm) Roll, 36″ (91.4cm) Roll |
| General | |
| Power consumption | 80 Watt, 32 Watt (economy), 2 Watt (standby), 0.3 Watt (Power off) |
| Product dimensions | 1,645 x 499 x 975 mm (Width x Depth x Height) |
| Product weight | 132 kg |
| Mobile and Cloud printing services | Apple AirPrint, Epson Cloud Solution PORT, Epson Cloud Solution PORT, Epson Smart Panel App |
| What’s in the box | AC cable, Adobe PostScript 3, Ink set, Installation/safety manual, Maintenance boxes, Setup guide, Spindle Unit(s), SureColor T-Series Printer, Warranty Documents |
| Optional extras | Cover Plus warranty extensions, SSD (Solid State Drive), NFC Card Reader (Server), NFC Card Reader (Serverless), Roll Feed Spindle 36″ |
| Other Features | |
| Memory | 4 GB |
| Emulations | ESC/P, PDF 1.7, HP-GL2, RTL, Adobe® Postscript 3® |
| Optional storage | 960 GB |
| Optional Software & Solutions | Epson Print Automate, Dinax Mirage, Epson Cloud Solution PORT, Epson Print Layout, Epson LFP Accounting Tool, Epson Device Admin |
| Security | SNMP V3, IPSec, AES-256, Data Encryption, NFC – Card Authentication Reader, TMP (Trusted Platform Module), LDAP, IEEE802, SSL/TLS, Panel Admin Mode |
| Media Handling | Auto cutter, Auto take up reel, Borderless Print |
