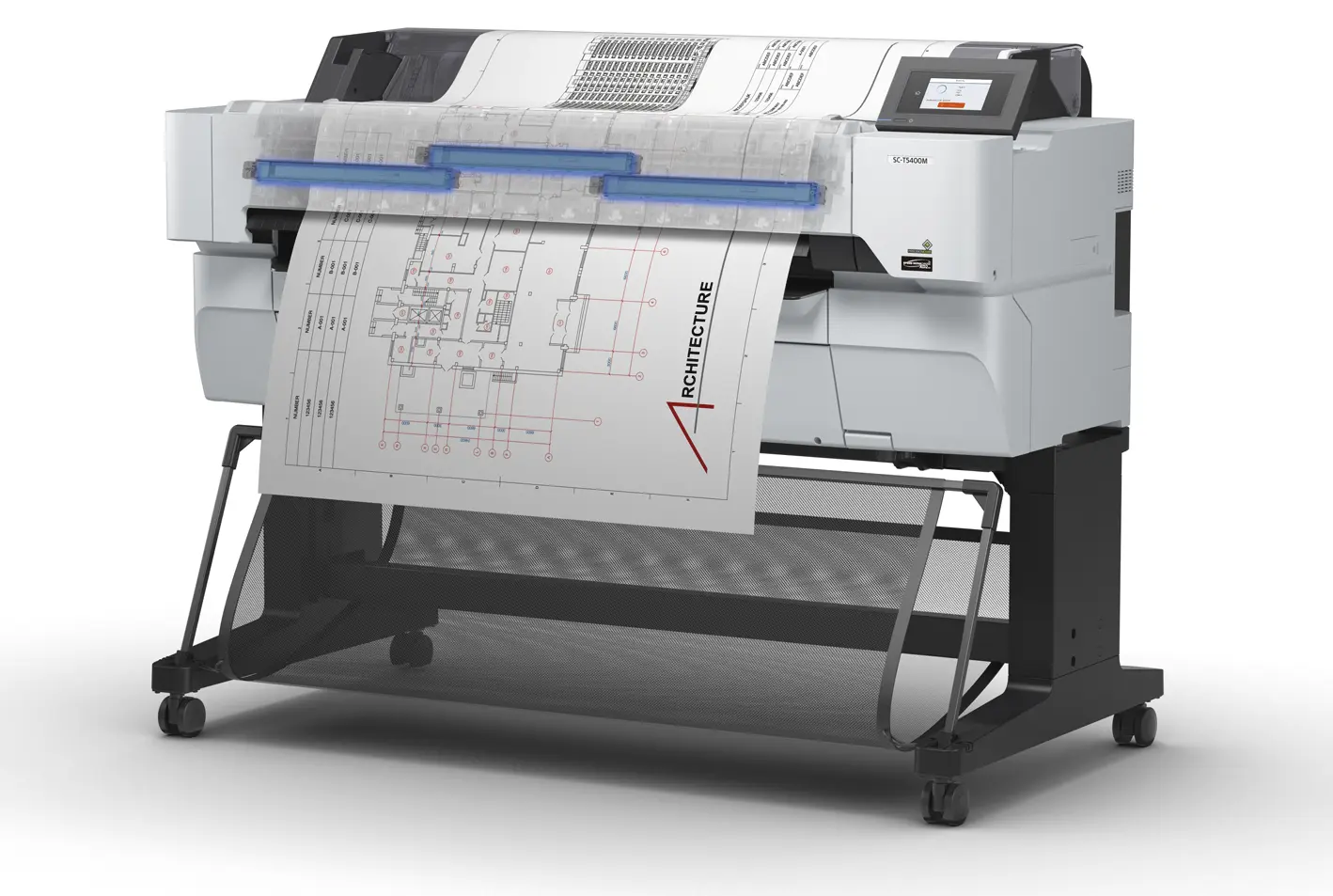

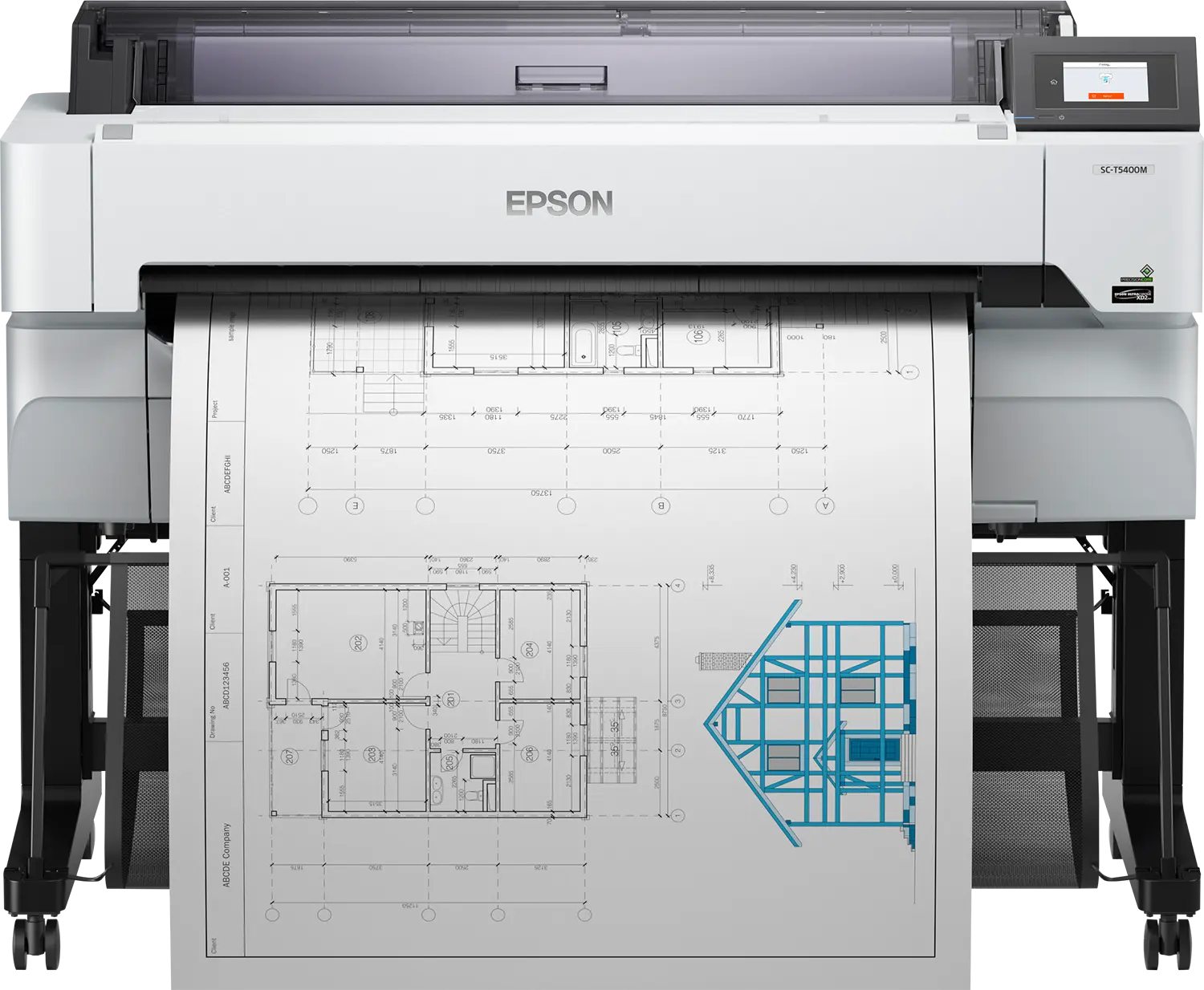

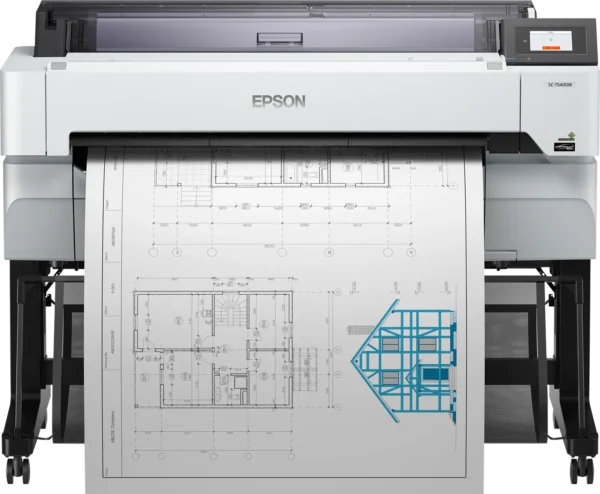

Epson SureColor SC-T5400M MFP Plotter Printer
• Integrated scanner
With simple, top-loading functionality
• Easy to use
Intuitive features throughout
• Affordable
Low TCO, two-year standard warranty, large capacity ink cartridges
• Reliable
NVT helps prevents misprints
• Simple workflow integration
Seamless integration into existing workflow
Product Description
| Technology | |
|---|---|
| All-in-One Functions | Print, Scan, Copy |
| Ink Technology | Pigment ink |
| First Page Out | Monochrome22 Seconds, Colour22 Seconds |
| Colours | Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment] |
| Colours Capacity | Black [110ml, 350ml] |
| Minimum Droplet Size | 4 pl, With Variable-Sized Droplet Technology |
| Print from | PC, MAC, Mobile Device, USB |
| Ink tank capacity | 350 ml |
| Nozzle Configuration | 800 Nozzles Black, 800 Nozzles per Color |
| Printing Resolution | 2,400 x 1,200 DPI |
| Paper / Media Handling | |
| Paper Formats | A1, A2 (42.0×59.4cm), A2+, A3+, A3 (29.7×42.0 cm), A4 (21.0×29.7 cm), B1 (72.8×102.8 cm), B2 (51.4×72.8 cm), B3, B4, B5, 17″, 24″, A0, 36″ |
| Print Margins Sheet Media | Mode 1: 3 mm (top), 3 mm (right), 20 mm (bottom), 3 mm (left) |
| Print Margins Roll Media | Mode 1: 3 mm (top), 3 mm (bottom) |
| Compatible Paper Thickness | 0.05 mm – 0.3 mm |
| Printable Length | Roll91 Minimum |
| Borderless printing on | 10 inches, 11.81 inches, 12.99 inches, 15.98 inches, 20.28 inches, 33.11 inches, 17″ (43.1cm) Roll, 24″ (60.9cm) Roll, 36″ (91.4cm) Roll |
| General | |
| Power consumption | 38 Watt, 1.6 Watt (standby), 0.25 Watt (Power off) |
| Supply Voltage | AC 100 V – 240 V, 50 Hz – 60 Hz |
| Product dimensions | 1,385 x 750 x 1,060 mm (Width x Depth x Height) |
| Product weight | 88 kg |
| Sound Power | Operation:7.5 B (A) |
| Mobile and Cloud printing services | Apple AirPrint |
| Noise Level | Operation (Roll):50 dB (A) Standby:32 dB (A) |
| What’s in the box | AC cable, Ink set, Maintenance box, Printer stand, Setup guide, SureColor T-Series Printer/Scanner, Warranty document |
| Optional extras | Cover Plus warranty extensions, Roll Feed Spindle 36″ |
| Other Features | |
| Compatible Operating Systems | Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Emulations | ESC/P-R, HP-GL2, RTL |
| Features | Direct print from USB |
| Interfaces | USB 3.0, Ethernet 1000, Wireless LAN IEEE 802.11b/g/n, Wi-Fi Direct |
| Optional Software & Solutions | Epson Print Automate, Dinax Mirage, Epson Edge, Epson LFP Accounting Tool, Epson Device Admin, Epson Edge Dashboard |
| Security | TLS, SSL, IEE 802, SNMP, IPSec, IPv6 |
| Scan | |
| Scanner | Integrated |
| Output formats | JPEG, TIFF, PDF |
| Scanner type | Contact image sensor (CIS) |
| Light Source | Dual LED (RGB) |
| Media width | 38″ (153mm to 965.2mm) |
| Scan width | 36″ (153mm to 914.4mm) |
| Optical Resolution | 600 DPI x 600 DPI (Horizontal x Vertical) |
| Scanning Speed | 4.5 inch/sec ( Colour, Single-sided, 200 dpi; 7.5 inch/sec ( Monochrome, Single-sided, 200 dpi; |
| Copy | |
| Reduction / Enlargement | 25 % – 400 % |
| Maximum number of copies | 99 |
| Thickness | 0.8 mm |
