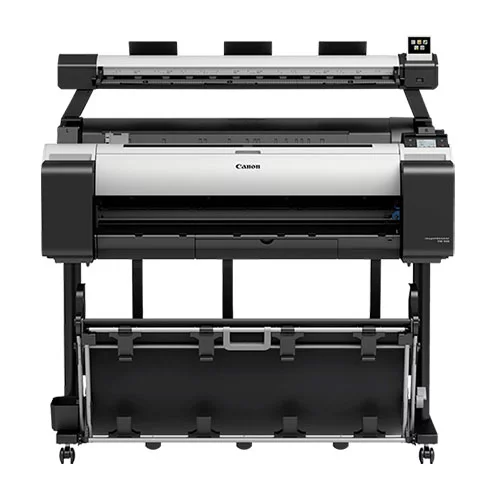

Canon imagePROGRAF TM-300 MFP L36ei

Easy to use, the imagePROGRAF TM-300 MFP L36ei prints up to 144 pph (A1) and simultaneously processes printing and scanning to save more time. Dedicated ScanApp Lei software boosts productivity with continuous scan and copy to cloud, USB and PC. Save time by printing and scanning simultaneously double efficiency from parallel processing. High-quality printing with rich colour and sharp text from 5-colour, full pigment Lucia TD ink. Streamlined internal operations, including dampened fans and vibrations, means 60% less noise. A compact and integrated design, with full front usability, means little installation space. SingleSensor technology from Global Scanning delivers crystal clear lines and text as well as bold colours.

Product Enquiry

Category: .

SCANNER TECHNOLOGY

Scan Technology: SingleSensor with multiple LED illumination

Optical resolution: 600dpi

Scan speed(COPY):300/300dpi Draft = 1ips colour, 3ips mono; 300/600dpi Standard = 1ips colour, 3ips mono; 600/600dpi Best = 0.5ips colour, 1.5ips mono

Scan speed(SCAN): 200dpi Draft = 1ips colour, 3ips mono; 300dpi Standard = 0.5ips colour, 1.5ips mono; 600dpi Best = 0.33ips colour, 1ips mono

Scan to USB – RGB/Greyscale/BW, TIFF (No ScanApp Lei)

Scan to USB – RGB/Greyscale/BW, JPG, PDF, PDF/A, M-PDF (ScanApp Lei available)

Scan to PC – RGB/Greyscale/BW, Tiff, JPEG, PDF, PDF/A, TiffG4, M-PDF

Copy: RGB/Greyscale/BW

Copy & Archive – (Combination of Copy and Scan to PC); Cloud connectivity is achieved by a link to Canon’s Direct Print & Share; PRINT is achieved by using Canon’s Direct Print & Share; Paper path: Face up, rear exit; Forward document transport only; Document return guide included;

Scan width: 36″ / 914.4mm

Min. scan width: 6″ / 152.4mm

Max. document width: 38″ / 965.2mm

Max. scan length: 109″ / 2768mm

Max & Min Document thickness: Designed to scan Canon iPF printer CAD paper; Min = 0.07mm; Max = 0.5mm

Scan accuracy: Accuracy 0.2% +/-1 pixel

Control Panel: 3″ touch screen display

Weight of scanner: 6.56kg (14.5lbs) without Doc return guide

Dimensions width: 1238mm

Dimensions height: 131mm

Dimensions depth: Without Doc Return Guide – Paper tray folded: 146mm

Without Doc Return Guide – Paper Tray flat: 193mm

With Doc Return Guide – Paper tray folded: 206mm

With Doc Return Guide – Paper Tray flat: 253mm

PRINTER TECHNOLOGY

Printer Type: 5 Colour 36″/914mm

Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

Print Resolution: 2,400 x 1,200 dpi

Number of Nozzles: 15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)

Nozzle Pitch: 1,200 dpi (2 lines)

Ink Droplet Size: minimum 5 pl per colour

Ink Capacity: Sales Ink: 130ml/300ml; Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow)

Ink Type: Pigment inks – Black, Matte Black, Cyan, Magenta, Yellow

Standard Memory: 2 GB

Hard Drive: N/A

Printing Speed: Plain Paper (A0 page size): 0:40 (Fast Economy Mode); 0:46 (Fast); 1:14 (Standard)

Plain Paper (A0 page size): 0:44 (Fast); 1:18 (Standard)

Coated Paper (A0 page size): 1:41 (Fast); 2:36 (Standard)

Media Feed and Output: Roll paper: One Roll, Upper-loading, Front Output; Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever)

Media Width: Roll paper: 203.2 -917 mm; Cut sheet: 203.2 – 917 mm

Media thickness: Roll/Cut: 0.07 – 0.8 mm

Minimum Printable Length: Roll paper: 203.2 mm; Cut sheet: 279.4 mm

Maximum Printable Length: Roll paper: 18 m (Varies according to the OS and application); Cut sheet: 1.6 m

Maximum Media Roll Diameter: 150 mm

Media Core Size: Internal diameter of roll core: 2″/3″

Margins Recommended area: Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm; Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm

Margins Printable area: Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm; Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm; Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm; Cut sheet for thers: Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Media Feed Capacity: Manually switchable by user

Borderless Printing Width (Roll Only): 515mm(JIS B2), 728mm(BIS B1), 594mm(ISO A1), 841mm(ISO A0),10″,14″,17″,24″,36″; [Printable]257mm(JIS B4),297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2),8″, 12″, 16″, 20″, 30″, 300mm, 500mm, 600mm, 800mm

Maximum number of delivered prints: Stand/Basket – Standard position: 1 sheet; Stand/Basket – Flat position: 20 sheets on A1, A2 landscape (excludes strong curled condition)

DIMENSIONS AND WEIGHT

Physical Dimensions and Weight: Main Unit, Stand and Basket; 1289 x 887 x 1060 mm (Basket Open); 1289 x 757 x 1060 mm (Basket Closed); 60 kg (including Roll Holder Set, excluding ink and print head)

Packaged Dimensions and Weight: Printer (Main unit with stand (SD-32) and pallet): 1462 x 913 x 961 mm, 105 kg
